VIDEO ABOUT VERTICAL SLOTTING MACHINE CNC BK5030

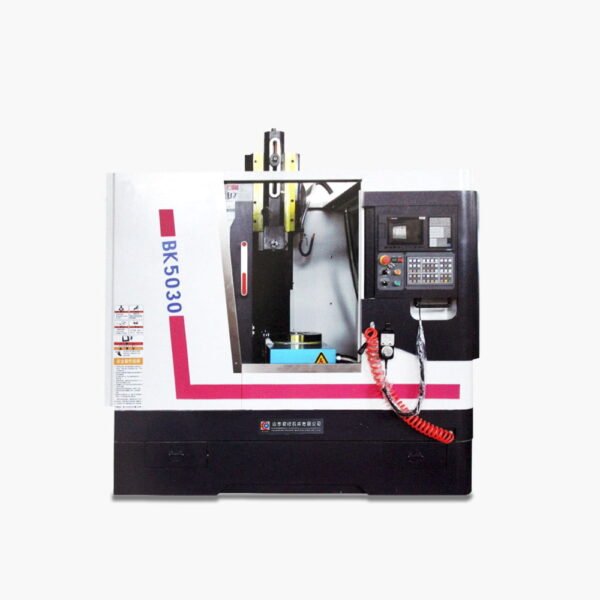

DESCRIPTION OF VERTICAL SLOTTING MACHINE CNC BK5030
The purpose of the BK5030 rock drill is to use chiseling and irregular straight external surfaces and holes, as well as chiseling various shapes of grooves and grooves in parts manufacturing, instrument manufacturing, machine tool manufacturing, and other industries. On this type of rock drill, metal and non-metallic products, such as plastic products, can be processed.
CHARACRISTICS OF BK5030
| Model | BK5030 |
| The maximum length of ram | 300mm |
| Ram adjustment stroke | 300mm |
| Number of ram movements | 30-150n/min |
| Working desk size | 550×405mm |
| Table travel | 250×300mm |
| The distance between the axis of the tool bearing hole and foream of the column | 505mm |
| The distance between the end face of the cutter head support hole and the table | 540mm |
| X direction motor torque | 6N.M |
| Y direction motor torque | 6N.M |
| Ball screw (X) | FFZD3205-3/P4 |
| Ball screw (Y) | FFZD3205-3/P4 |
| Main motor power | 3.7KW |
| Machine weight | 2800kg |
| Package dimensions | 2300×2200×2300mm |
