VIDEO ABOUT VERTICAL SLOTTING MACHINE 7A450

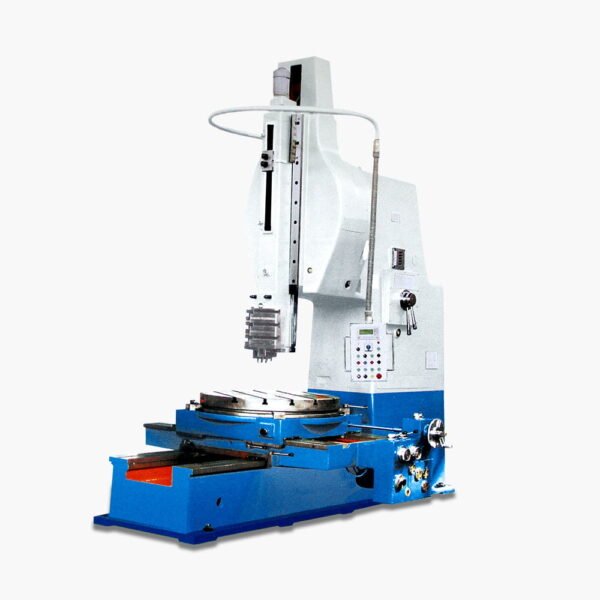

DESCRIPTION OF VERTICAL SLOTTING MACHINE 7A450
The purpose of the 7A450 rock drill is to use chiseling and irregular straight external surfaces and holes, as well as chiseling various shapes of grooves and grooves in parts manufacturing, instrument manufacturing, machine tool manufacturing, and other industries. On this type of rock drill, metal and non-metallic products, such as plastic products, can be processed.
CHARACRISTICS OF 7A450
| Model | 7A450 |
| Maximum stroke of the ram | 520mm |
| Maximum pin length | 500mm |
| Workpiece weight | 2000kg |
| Maximum cutting force | 16000N |
| The number of strokes per minute of the ram | 9.12.5.18.25.36.50.r.p.m |
| Slide tilt angle | ±10° |
| Insertion tool size (L × W) | 25×40mm |
| Workbench diameter | 1000mm |
| Longitudinal movement distance of workbench | 660mm |
| Horizontal movement distance of workbench | 1000mm |
| Main engine power | 7.5KW |
| Outline dimensions of the slotting machine (L × W × H) | 3400×2085×3307mm |
| Machine tool quality | 10300kg |
