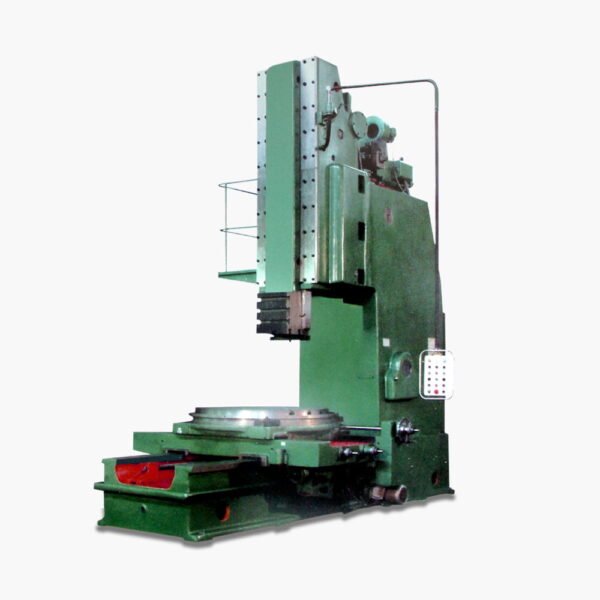

DESCRIPTION OF VERTICAL SLOTTING MACHINE 7A440
The purpose of the 7A440 rock drill is to use chiseling and irregular straight external surfaces and holes, as well as chiseling various shapes of grooves and grooves in parts manufacturing, instrument manufacturing, machine tool manufacturing, and other industries. On this type of rock drill, metal and non-metallic products, such as plastic products, can be processed.
CHARACRISTICS OF 7A440
| Model | 7A440 |
| Maximum stroke of the ram | 420mm |
| Maximum pin length | 400mm |
| Workpiece weight | 500kg |
| Maximum cutting force | 7500N |
| The number of strokes per minute of the ram | 30.32.50.80.r.p.m |
| Slide tilt angle | 0-8° |
| Insertion tool size (L × W) | 25×40mm |
| Workbench diameter | 630mm |
| Working table vertical and horizontal motorized feed range | 0.08-1.21mm |
| Main engine power | 4KW |
| Outline dimensions of the slotting machine (L × W × H) | 2290×1525×2485mm |
| Machine tool quality | 3700kg |
