VIDEO ABOUT VERTICAL MILLING MACHINE 6T16

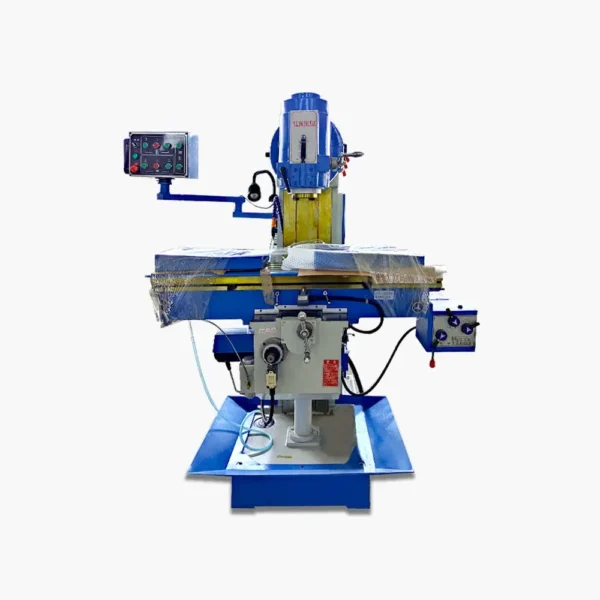

DESCRIPTIONS OF VERTICAL MILLING MACHINE 6T16
The new vertical milling machine is designed to perform milling operations of various parts made of ferrous and non-ferrous metals and their alloys in conditions of single, small-scale and serial production.
The powerful drive of the main movement and carefully selected gear ratios ensure optimal processing modes under various cutting conditions and full use of the cutting tool capabilities.
CHARACRISTICS OF 6T16
Model | 6T16 |
Table size | 1500*360mm |
Table load | 650kg |
T slot(number-width*pitch) | 3-18*80 |
Spindle taper | ISO50 7:24 |
Range of spindle speeds | 60-1700rpm |
Distance between spindle nose and working surface of base | 60-540mm |
Spindle motor power | 4kw |
Machine weight | 2700kg |
Overall dimension | 2600*2200*2220mm |
