VIDEO ABOUT VERTICAL MILLING MACHINE 6T15

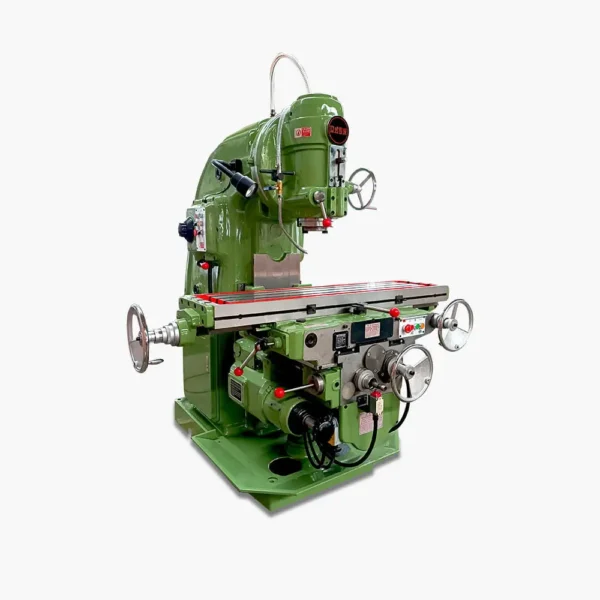

DESCRIPTIONS OF VERTICAL MILLING MACHINE 6T15
The new vertical milling machine is designed to perform milling operations of various parts made of ferrous and non-ferrous metals and their alloys in conditions of single, small-scale and serial production.
The powerful drive of the main movement and carefully selected gear ratios ensure optimal processing modes under various cutting conditions and full use of the cutting tool capabilities.
CHARACRISTICS OF 6T15
| Model | 6T15 |
| Table size | 1325*320mm |
| Table load | 500kg |
| T slot(number-width*pitch) | 3-18*70 |
| Table travel | 700/680mm 255/240mm 370/350mm |
| Table feed range | XY:23.5-1180mm/min Z:770mm/min |
| Table rapid traverse | XY:2300mm/min Z:770mm/min |
| Spindle taper | ISO50 7:24 |
| Range of spindle speeds | 30-1500rpm |
| Swivel angle of vertical milling head | ±45° |
| Distance between spindle nose and working surface of base | 45-415mm |
| Spindle motor power | 7.5kw |
| Feed motor power | 1.5kw |
| Machine weight | 2900/3200kg |
| Overall dimension | 2300*1770*2000mm |
