VIDEO ABOUT VERTICAL MACHINING CENTER 650S

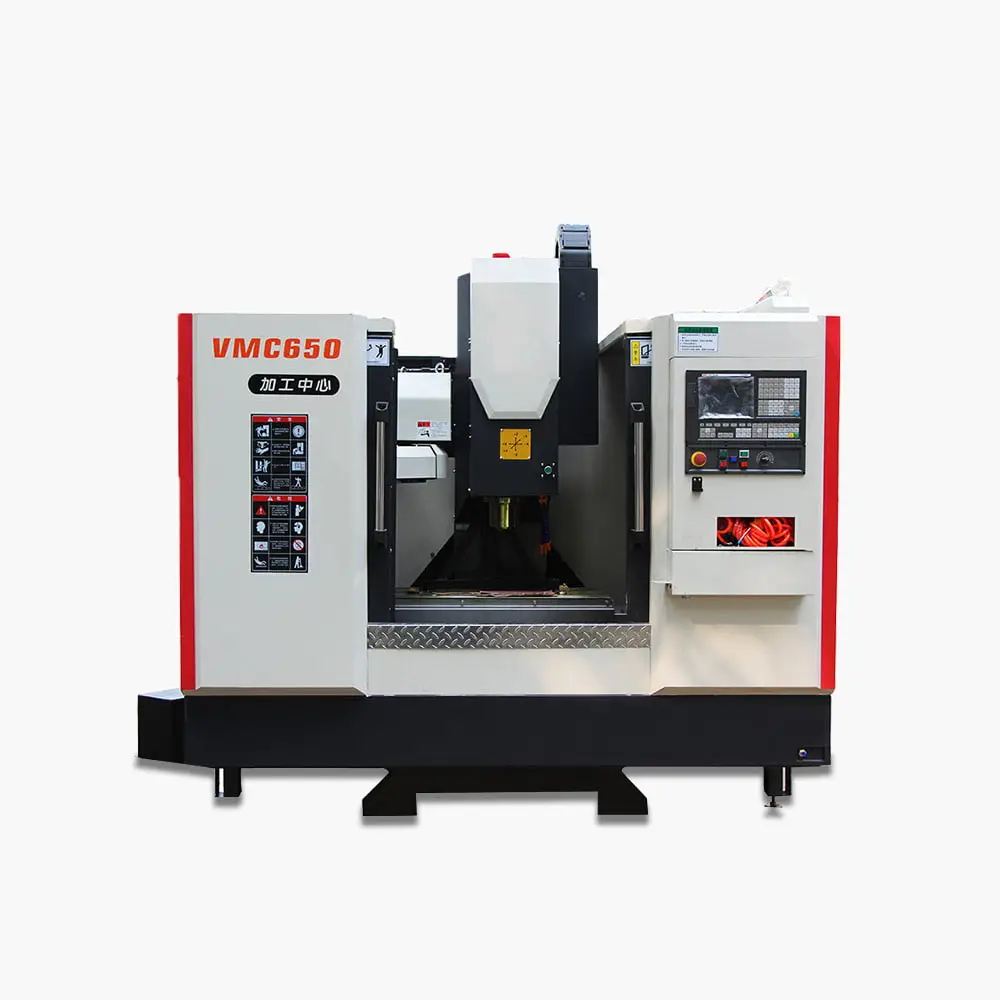

DESCRIPTION OF VERTICAL MACHINING CENTER 650S
The S series vertical machining center adopts a fixed frame and mobile desktop design, with high main component rigidity and light moving component weight, fully meeting user needs. Milling, boring, drilling, wire cutting, and other processes can be carried out under one clamp. The standard 8000 RPM with spindle has a 1.5:1 reduction and a 50% torque increase. It is suitable for high-speed precision machining of small and medium-sized Machine element in general machinery, automobile, aerospace, textile and other industries. The vertical high-speed machining center series inherits our years of excellent quality and development experience in vertical machining centers, and can provide your customers with faster machining efficiency and higher machining quality.
CHARACTERISTICS OF 650S
| Model | 650S |
| Table size | 900 * 400mm (workbench optional 1000 * 500mm) |
| Maximum load-bearing capacity of the workbench | 450kg |
| X/Y/Z axis coordinate stroke | 650/400/500mm (optional 700/800mm in X direction) |
| Distance from the centerline of the spindle to the front guide rail of the column | 476mm |
| Distance from spindle end face to workbench plane | 120-620mm |
| X/Y/Z maximum feed speed | 8000mm/min |
| X/Y/Z maximum movement speed | 36/36/36m/min |
| Maximum spindle speed | 8000r/min |
| Spindle taper | BT40 |
| Spindle motor power | 5.5kw |
| X/Y/Z axis servo motor | 2010/10/15N.m |
| X/Y/Z motor connection method | Direct connection |
| X/Y/Z guide rail form | Three axis rail |
| T slot(number-width*pitch) | 3-18x125mm |
| Positioning accuracy | ±0.01mm |
| Repetitive positioning accuracy | ±0.005/300mm |
| Tool magazine form | Bamboo hat style (optional disc) |
| Magazine capacity | 16 |
| Maximum tool weight | 7kg |
| Maximum tool length | 300mm |
| Total electrical capacity | 10KVA |
| Overall dimension | 2300x2200x2400mm |
| Machine weight | 4000kg |
