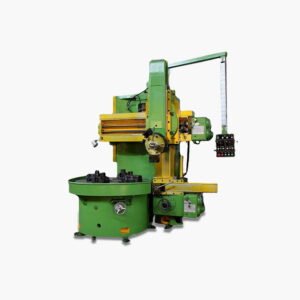

DESCRIPTION OF VERTICAL LATHE MACHINE C5112
The basis of the design of a vertical lathe is a bed and a column made of high—density cast iron – a massive base necessary to eliminate vibrations and vibrations during work. Cutting tools, with which the processing of internal and external surfaces is carried out, are attached using a revolver head. The working area of the device itself is always completely closed, and a special fence allows you to avoid splashing of the coolant and scattering of chips.
The vertical lathe has a vertical axis of rotation, which is due to the peculiarities of working with products of large weight and / or larger diameter compared to the length. Due to the rotation of the workpiece around the vertical axis, it becomes possible to optimally distribute the load from the working area of the machine to its foundation, thereby avoiding runouts that may occur during the rotation of massive workpieces, and reducing the distortions of the apparatus itself.
CHARACTERISTICS OF C5152
| Model | C5112 |
| Table diameter | 1000mm |
| Max.Turning diameter | 1250mm |
| Max.Height of workpiece | 1000mm |
| Max.Weight of workpiece | 3.2T |
| Table speed range | 6.3-200r/min |
| Table speed steps | 16 |
| Max.Ttorque of table | 25000N.m |
| Vertical tool post feed steps | 0.8-86mm/min |
| Vertical tool post feed range | 12 |
| Max.Cutting force of vertical tool post | 25000N |
| Max.Travel of vertical tool post(horizontal) | 750mm |
| Max.Travel of vertical tool post(verticall) | 650mm |
| Swivel angle of vertical tool post | ±30° |
| Max.Cutting force of side tool post | 20000N |
| Side tool post travel(horizontal) | 630mm |
| Side tool post travel(vertical) | 900mm |
| Tool post rapid traverse | 2000mm/min |
| Tool section size | 30x40mm |
| Max.Travel of cross beam | 650mm |
| Cross beam lifting speed | 350mm/min |
| Main motor power | 22kw |
| Cross beam lifting motor power | 2.2kw |
| Machine weight | 8.5T |
| Overall dimension | 2360*2280*2800mm |
