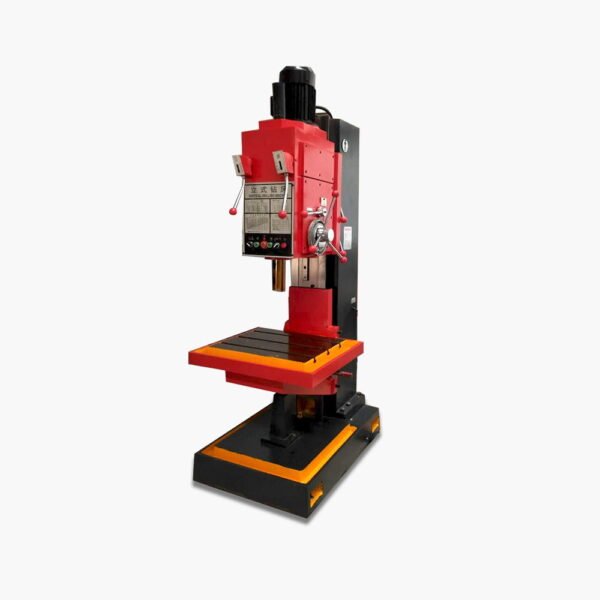

VERTICAL DRILLING MACHINE 2H163

Type:Vertical drilling machine
Model Number: 2H163
Origin: Shandong, China
Key points of sale:Vertical
Trademark: Congou
Condition: New
Max.drilling diameter: 63mm
Outgoing Video check: Submitted
Size (L*W*H): 1455×965×2790 mm
Weight(kg): 2500
Color: Customizable
Engine power: 5.5kw

VIDEO ABOUT VERTICAL DRILLING MACHINE 2H163

DISCRIPTION OF VERTICAL DRILLING MACHINE 2H163

The 2H163 vertical drilling machine is designed to perform drilling, reaming, countersinking, threading and trimming of ends. In the presence of additional equipment, which can be purchased for a fee, the machine is able to perform milling.

CHARACTRISTICS OF 2H163

Model	2H163
Max.drilling diameter	63mm
Max feed resistance	30000N
Max. allowble torque	1000N.m
Spindle taper	MT5
Spindle travel	250mm
Distance between spindle nose and working surface of base	800mm
Distance between spindle axis and column	375mm
Spindle box travel	250mm
Range of spindle speeds	40-570rpm
Number of spindle speeds	9
Range of spindle feeds	0.1-0.78mm/r
Number of spindle feeds	6
Table size	650*550mm
Table travel	300mm
Main motor power	5.5kw
Coolant motor power	0.09kw
Machine weight	2500kg
Overall dimension	14559652790mm
