DISCRIPTION OF VERTICAL DRILLING MACHINE 2H140
The 2H140 vertical drilling machine is designed to perform drilling, reaming, countersinking, threading and trimming of ends. In the presence of additional equipment, which can be purchased for a fee, the machine is able to perform milling.
CHARACTRISTICS OF 2H140
Model | 2H140 |
Max.drilling diameter | 40mm |
Max feed resistance | 16000N |
Max. allowble torque | 350N.m |
Spindle taper | MT4 |
Spindle travel | 250mm |
Distance between spindle nose and working surface of base | 750mm |
Distance between spindle axis and column | 350mm |
Spindle box travel | 200mm |
Range of spindle speeds | 31.5-1400rpm |
Number of spindle speeds | 12 |
Range of spindle feeds | 0.056-1.8mm/r |
Number of spindle feeds | 9 |
Table size | 560*480mm |
Table travel | 300mm |

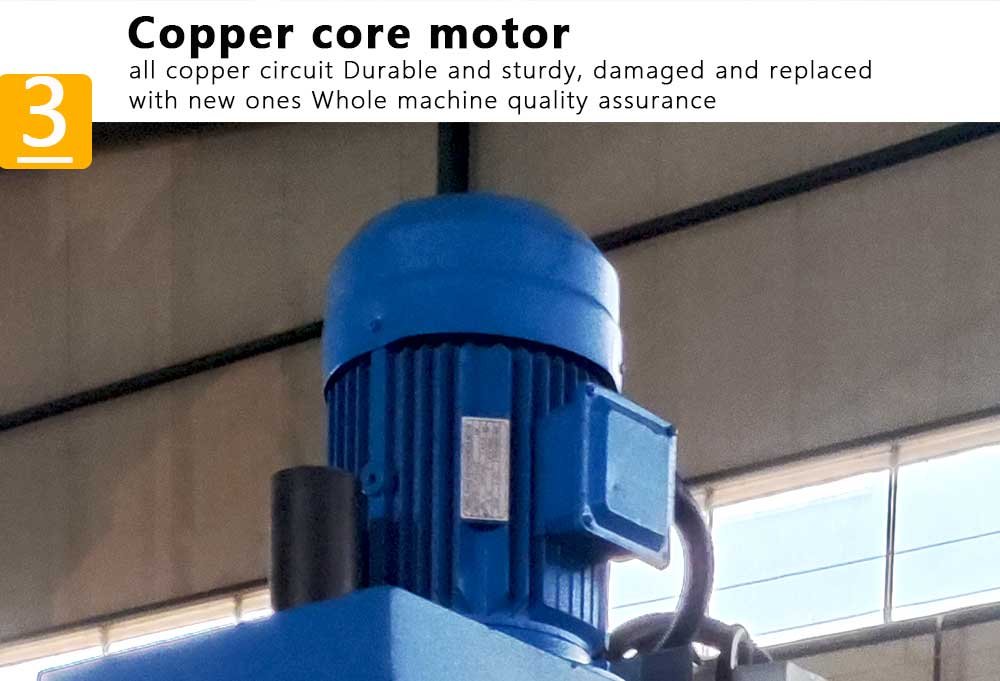

Main motor power | 3kw |
Coolant motor power | 0.09kw |
Machine weight | 1300kg |
Overall dimension | 1090*900*2530mm |
