Vertical drilling machine

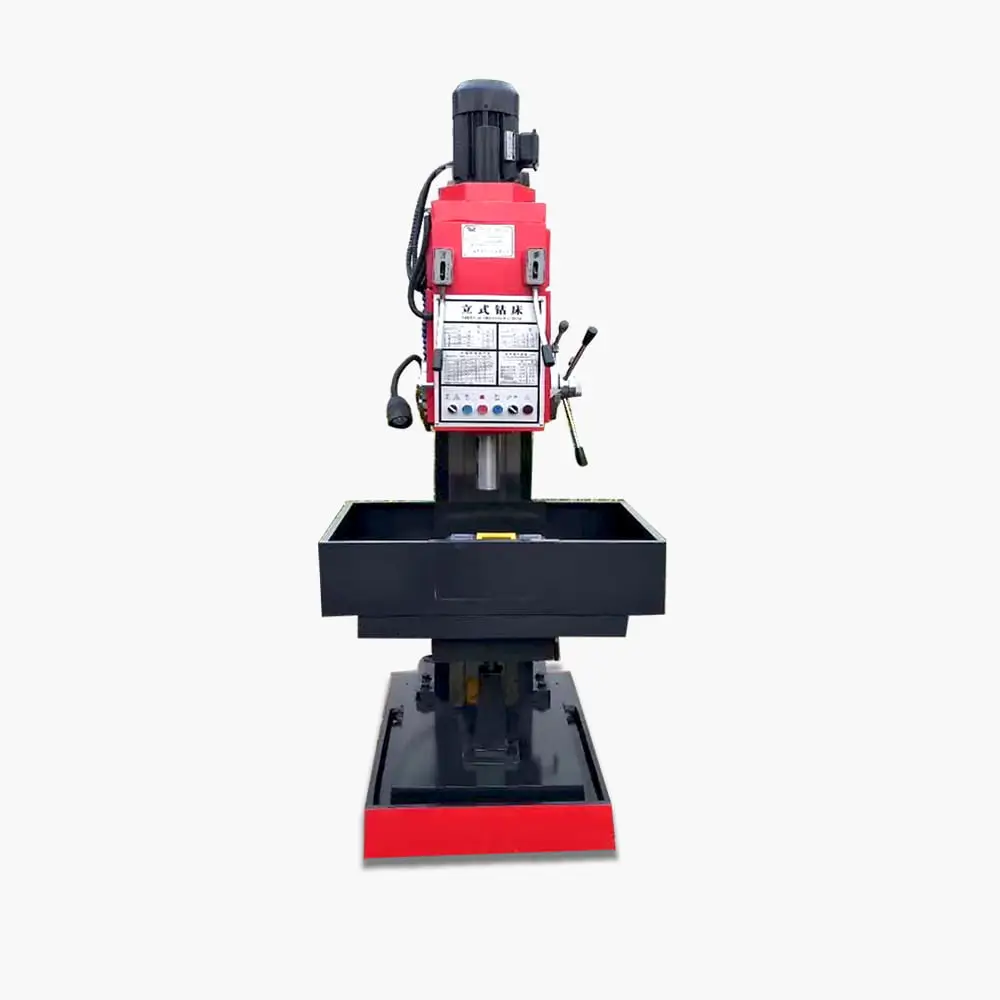

VERTICAL DRILLING MACHINE 2H1100

  • Type:Vertical drilling machine
  • Model Number: 2H1100
  • Origin: Shandong, China
  • Key points of sale:Vertical
  • Trademark: Congou
  • Condition: New
  • Max.drilling diameter: 100mm
  • Outgoing Video check: Submitted
  • Size (L*W*H): 1455×970×3170 mm
  • Weight(kg): 3500
  • Color: Customizable
  • Engine power: 7.5kw
Get A Quote
Contact Us

VIDEO ABOUT VERTICAL DRILLING MACHINE 2H1100

DISCRIPTION OF VERTICAL DRILLING MACHINE 2H1100

The 2H1100 vertical drilling machine is designed to perform drilling, reaming, countersinking, threading and trimming of ends. In the presence of additional equipment, which can be purchased for a fee, the machine is able to perform milling.

CHARACTRISTICS OF 2H1100

Model2H1100
Max.drilling diameter100mm
Max feed resistance45000N
Max. allowble torque1150N.m
Spindle taperMT6
Spindle travel310mm
Distance between spindle nose and working surface of base850mm
Distance between spindle axis and column480mm
Spindle box travel200mm
Range of spindle speeds26-320rpm
Number of spindle speeds6
Range of spindle feeds0.096-0.717mm/r
Number of spindle feeds6
Table size760*650mm
Table travel300mm
Main motor power7.5kw
Coolant motor power0.09kw
Machine weight3500kg
Overall dimension1465*970*3170mm
