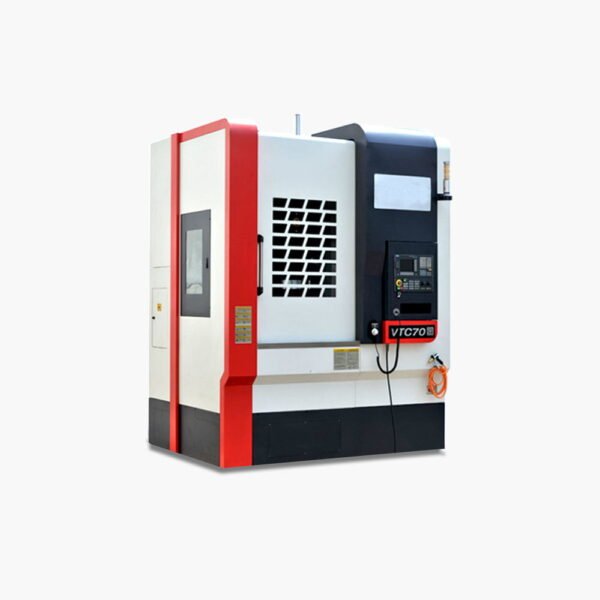

DESCRIPTION OF VERTICAL CNC LATHE MACHINE V70

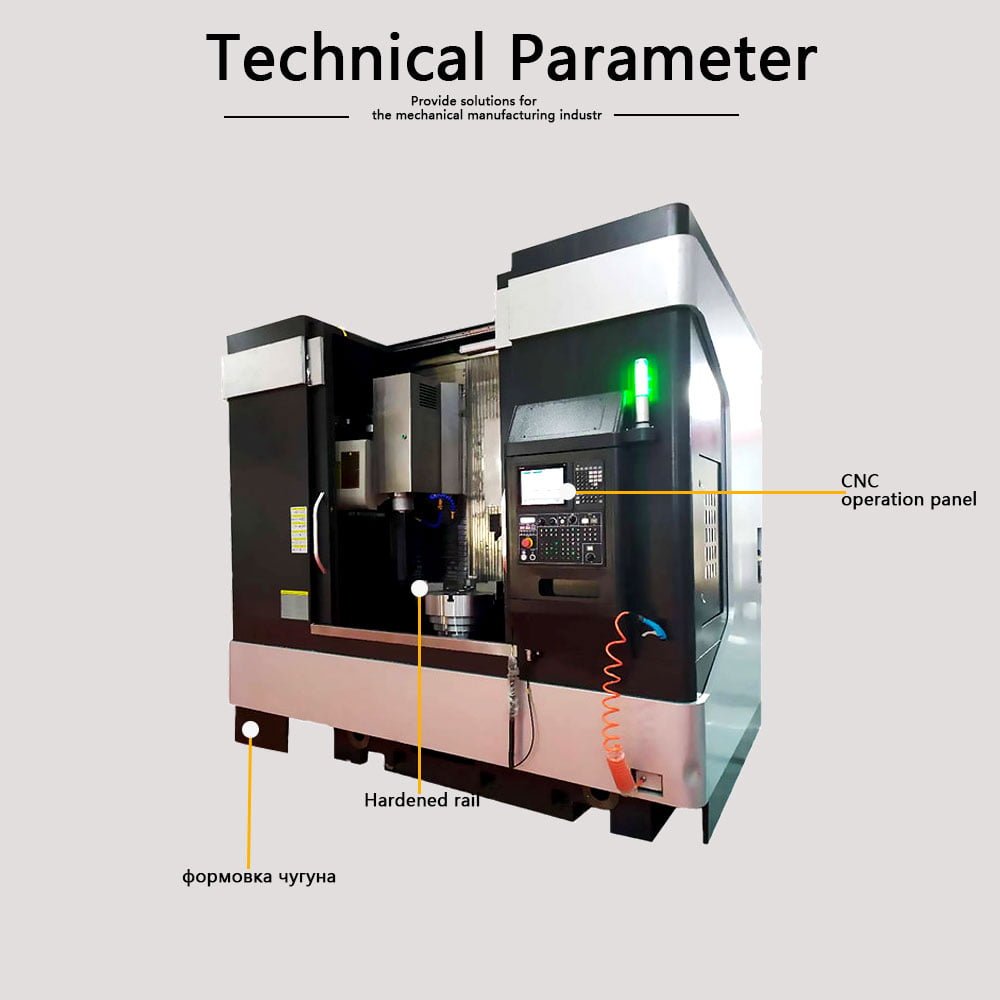

The V-series machine is a high-precision vertical Congou lathe. The cast bed reinforced with multiple internal stiffeners is made according to the principle of “housing in the housing”, it not only absorbs all vibrations and gives high rigidity to the machine, but also gives greater stability when heated. At the same time, a powerful spindle of its own design allows processing the heaviest alloys in all cutting modes. The big advantage of this machine model is its compact size.
The high precision machine is equipped with a CNC and allows you to solve a wide variety of tasks in the field of metalworking: manufacturing and processing of parts in the form of bodies of rotation, threading, end processing, processing of conical and cylindrical surfaces, milling, etc.
CHARACTERISTICS OF V70
| Model | V70 |
| Maximum rotating diameter of machine tool | 700mm |
| Spindle speed step | stepless |
| Spindle speed range | 100~1000rpm |
| Cutting feed speed | 0.1~1000mm/min |
| Tool rest vertical movement length | 700mm |
| Tool rest horizontal movement length | 700mm |
| Rapid traverse speed vertically | 16000mm/min |
| Rapid traverse speed horizontally | 16000mm/min |
| Tool rest structure | Auto carriage ( horizontal or vertical) |
| Diameter of hydraulic chuck | 400 or 500mm |
| Main motor power | 22kw |
| Positioning accuracy | 0.008/0.012mm |
| Repeated positioning accuracy | 0.008mm |
| Machine tool overall dimension | 2050x1800x3200mm |
