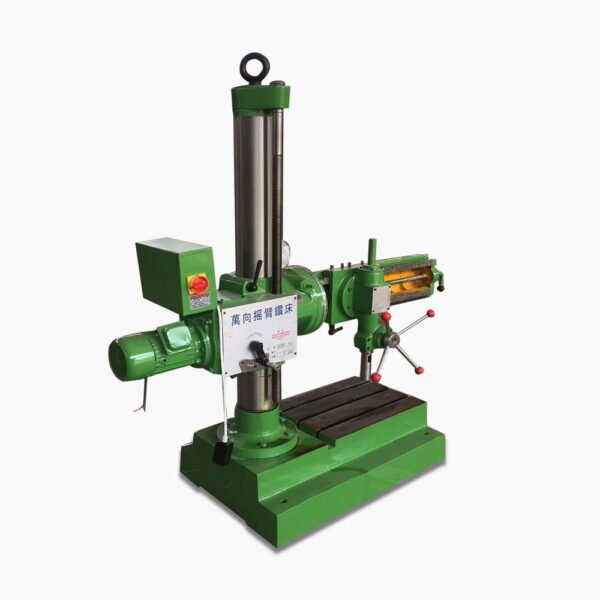

DISCRIPTION OF UNIVERSAL RADIAL DRILLING MACHINE 2SR-32-1
The 2SR-32-1 radial drilling machine is designed to perform drilling, reaming, countersinking, threading and trimming of ends. In the presence of additional equipment, which can be purchased for a fee, the machine is able to perform milling.

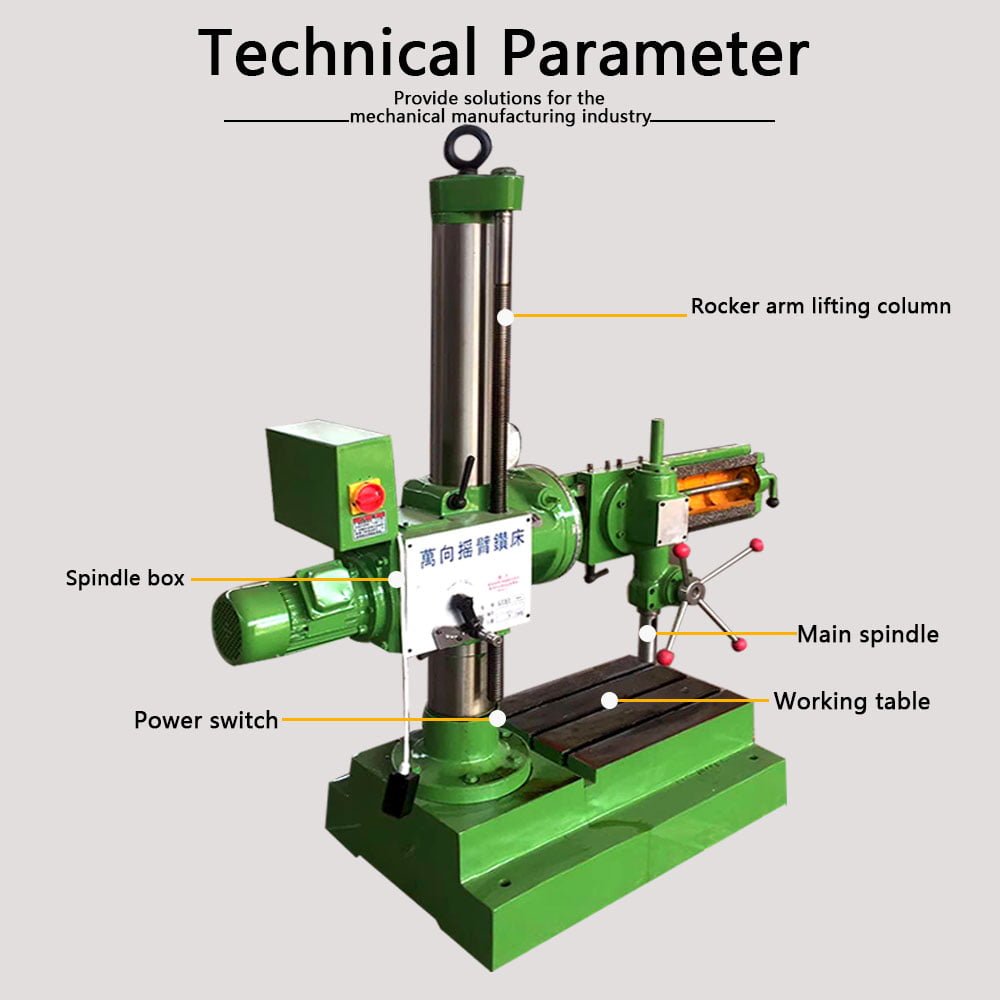

CHARACTRISTICS OF 2SR-32-1
| Model | 2SR-32-1 |
| Max.drilling diameter | 31.5mm |
| Spindle taper | 3 |
| Spindle travel | 130mm |
| Distance between spindle axis and column | 315-815mm |
| Distance of headstock horizontal movement | 500mm |
| Distance between spindle nose and working surface of base | 25-870mm |
| Spindle travel | 845mm |
| Spindle swing angel | 360° |
| Vertical center line around the rocker swing angel | 360° |
| Vertical center line around the upright post rotating angel | 360° |
| Rocker arm lifting speed | 1.51m/min |
| Reading value per division of dial disc | 1° |

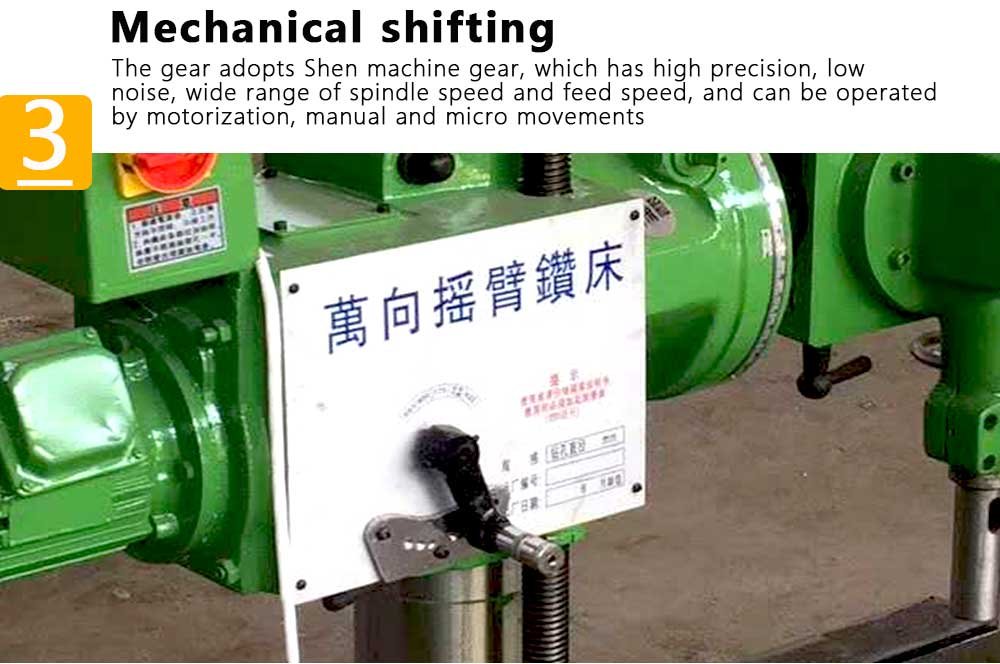

| Number of spindle speed changes | 4 |
| Range of spindle speeds | 173、425、686、960r/min |

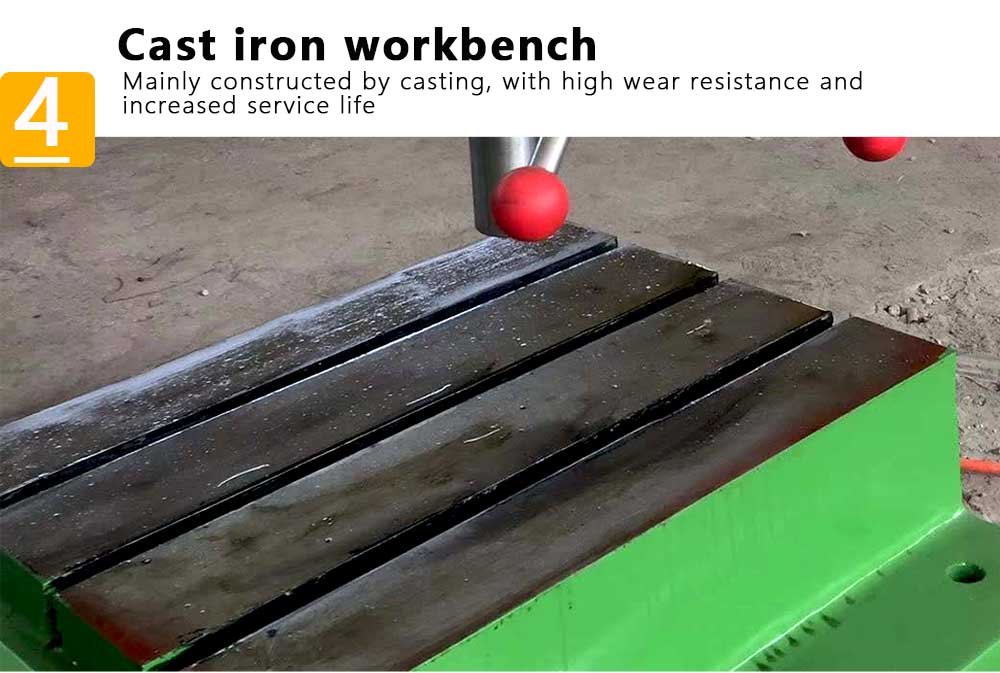

| Table size | 710×500mm |

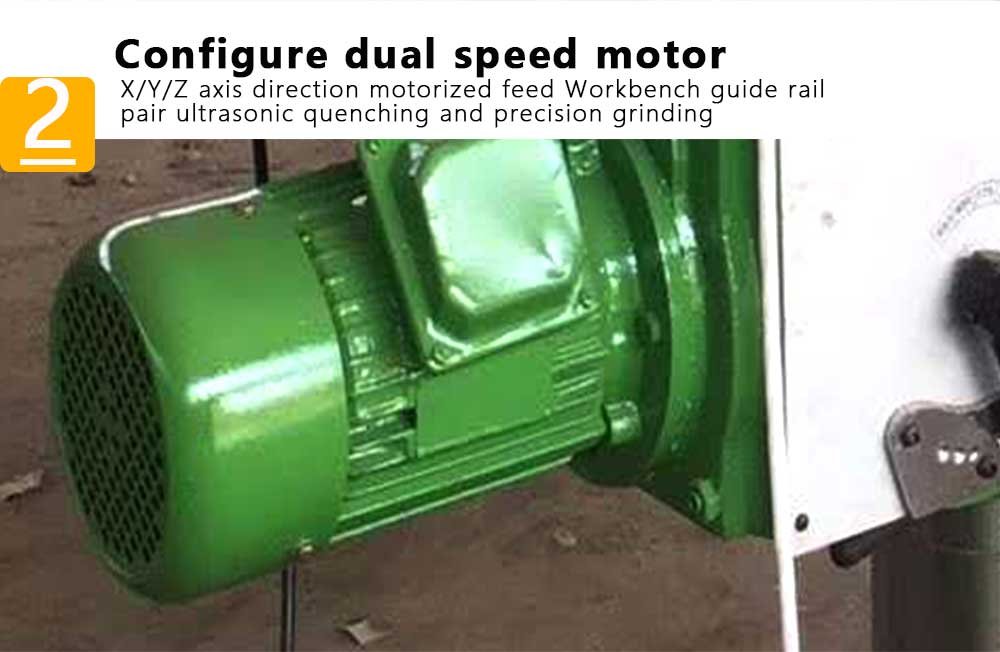

| Spindle motor power | 1.5kw |
| Overall dimension | 1800×700×2044mm |
| Machine weight | 870kg |
