VIDEO ABOUT UNIVERSAL MILLING MACHINE 67A36

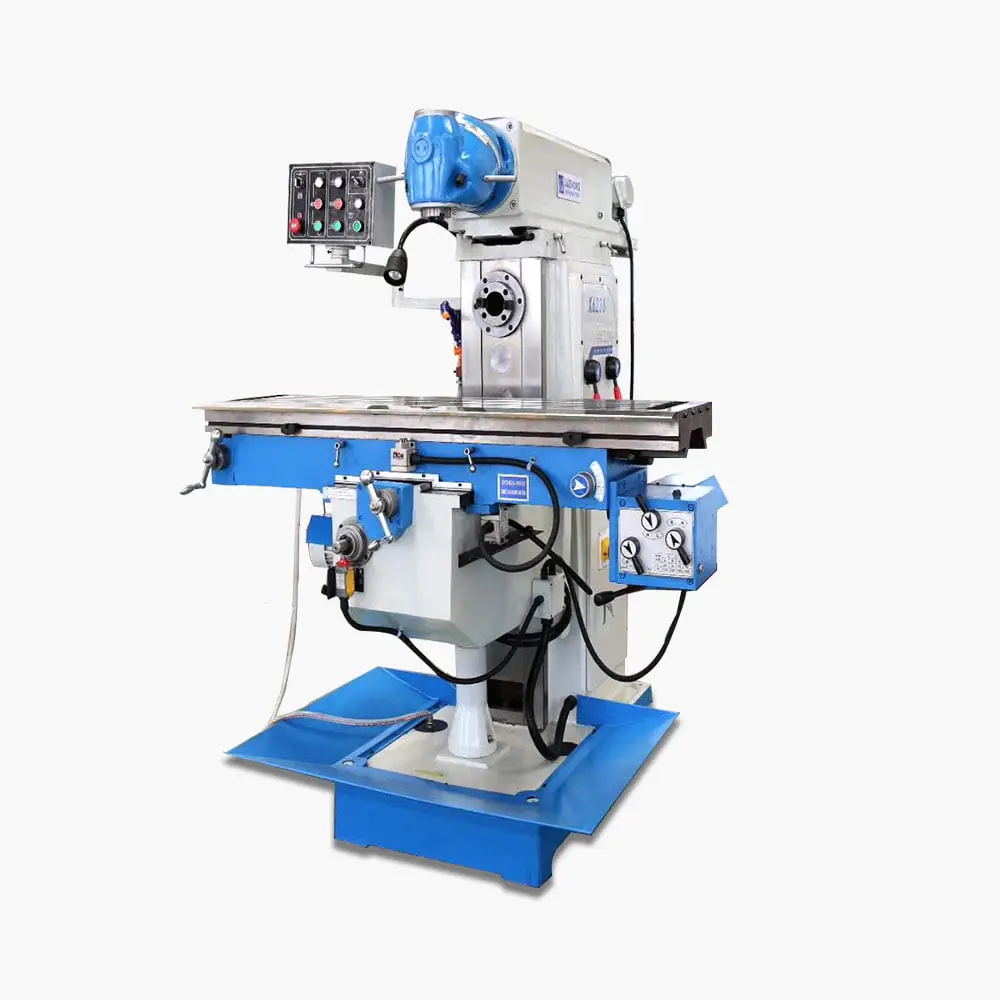

DESCRIPTIONS OF UNIVERSAL MILLING MACHINE 67A36
The tool universal milling machine is used for milling workpieces using cylindrical, disc and shaped cutters using a horizontal spindle, and end, end and keyway cutters using a rotary vertical spindle.
The machine allows you to perform milling and boring operations with high accuracy, as well as drilling, reaming, chiseling, centering, caulking, countersinking and deployment operations. The use of the machine is most appropriate at tool sites and in the machine shops of machine-building enterprises of single and small-scale production, as well as in repair departments of enterprises of various fields of activity.
The presence of two horizontal and vertical rotary spindles, as well as a large number of accessories to the machine, makes it widely universal and convenient for working in tool shops of factories in the manufacture of devices, tools, relief stamps and other products.
CHARACRISTICS OF 67A36
| Model | 67A36 |
| Table size | 1500*360mm |
| Table travel | 1000/320/400mm |
| T slot(number-width*pitch) | 3-18*80 |
| Spindle taper | ISO40 |
| Horizontal spindle taper | ISO40 |
| Spindle speed range | 48-1660rpm |
| Horizontal spindle range | 40-1300rpm |
| Distance between spindle nose and working surface of base | 150-550mm |
| Distance between horizontal spindle axis and table surface | 0-400mm |
| Table feed range | XY:22-555,Z:electric |
| Swivel angle of milling head | 360° |
| Spindle motor power | 4kw |
| Feed motor power | 1.1kw |
| Machine weight | 2580kg |
| Overall dimension | 2550*2050*2050mm |
