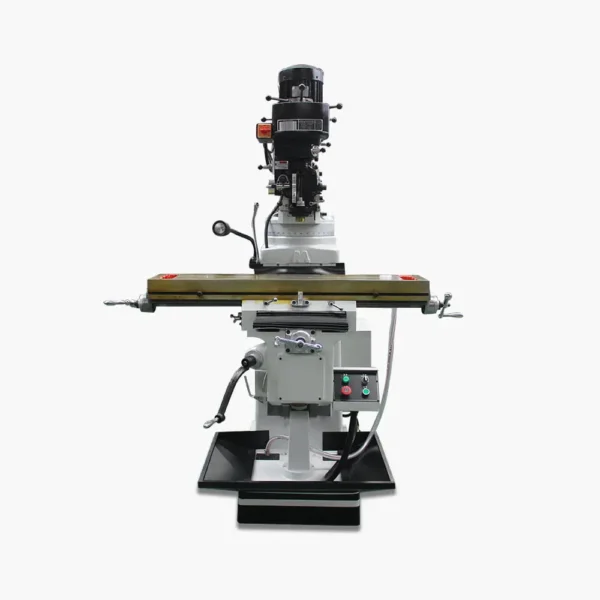

DESCRIPTIONS OF TURRET MILLING MACHINE 5E
A large range of spindle speed adjustment allows you to use the machine for boring and drilling. A revolver drum and a spindle feed system are installed on it. Additional equipment is provided for automatic table feeding.
CHARACRISTICS OF 5E
Model | 5E |
Table size | 1370*305mm |
Table travel | 810/400/400mm |
T slot(number-width*pitch) | 3-16*65 |
Spindle taper | R8 |
Range of spindle speeds | 50HZ:65-4500rpm 60HZ:80-5400rpm |
Spindle travel | 127mm |
Spindle feed range | 0.045,0.086,0.142mm |
Distance between spindle nose and working surface of base | 90-510mm |
Spindle motor power | 2.2kw |
Head rotation (left-right) | ±90° |
Head rotation (front-rear) | ±45° |
Machine weight | 1600kg |
Overall dimension | 1550*1650*2250mm |
