VIDEO ABOUT TURRET MILLING MACHINE 4EA

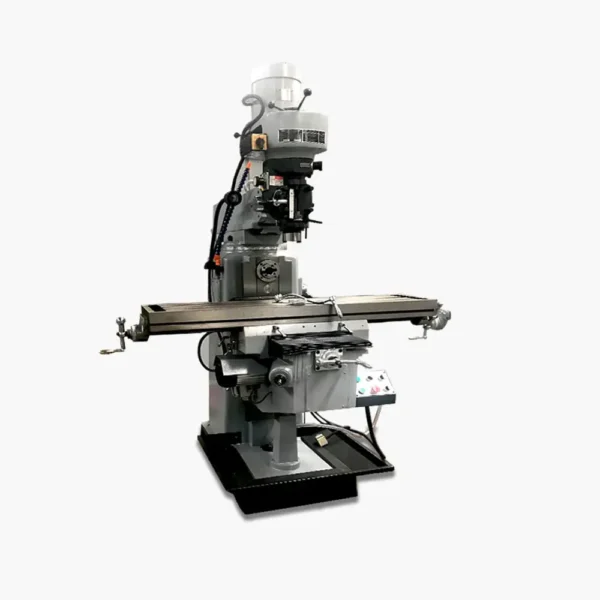

DESCRIPTIONS OF TURRET MILLING MACHINE 4EA
A large range of spindle speed adjustment allows you to use the machine for boring and drilling. A revolver drum and a spindle feed system are installed on it. Additional equipment is provided for automatic table feeding.
CHARACRISTICS OF 4EA
| Model | 4EA |
| Table size | 1270*254mm |
| Table travel | 780/400/400mm |
| T slot(number-width*pitch) | 3-16*65 |
| Spindle taper | R8/ISO40 |
| Horizontal spindle taper | ISO40 |
| Range of spindle speeds | 50HZ:65-4500rpm 60HZ:80-5400rpm |
| Horizontal spindle range | 45-1350rpm |
| Spindle travel | 127mm |
| Spindle feed range | 0.045,0.086,0.142mm |
| Distance between spindle nose and working surface of base | 90-510mm |
| Distance between horizontal spindle axis and table surface | 0-400mm |
| Spindle motor power | 2.2(V)/3(H)kw |
| Head rotation (left-right) | ±90° |
| Head rotation (front-rear) | ±45° |
| Machine weight | 1750kg |
| Overall dimension | 1550*1650*2250mm |
