VIDEO ABOUT SHAPER MACHINE BC6066

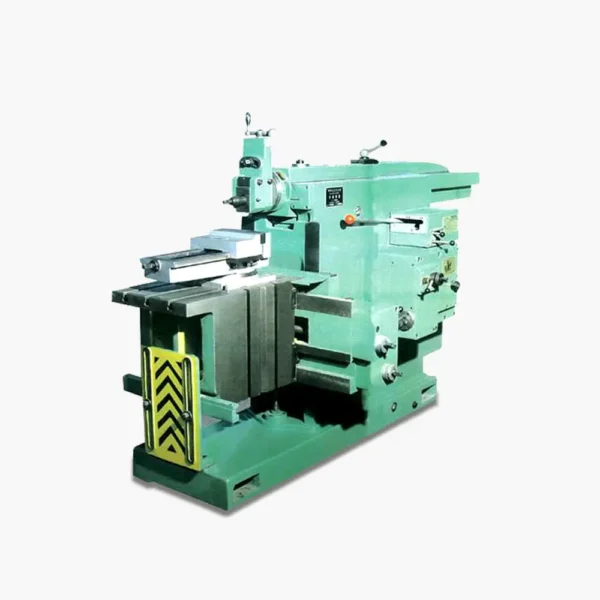

DESCRIPTION OF SHAPER MACHINE BC6066
Shaper BC6066 is mainly used for planning the plane on the small and medium-sized workpieces in small bench production of a single piece, forming the surface and grooves. Planer bench can turning angel of the table with horizontal and lift moving mechanism; for planning the inclined plane, thereby expanding the scope of use.
CHARACTERISTICS OF BC6066
| Model | BC6066 |
| cutting length | 660mm |
| Max.distance from the undersurface of ram to the worktable | 385mm |
| Max.working distance of knife rest | 120mm |
| The number of strokes per minute of the ram | 14、20、28、 40、56、80 |
| Ram stroke reciprocating table for each level of the scope of the direction of feed | 0.2～2.5mm |
| Ram stroke each table vertically reciprocating feed range | 0.08～1.00mm |
| Table area（length*width） | 660×400mm |
| Larger vertical stroke of the workbench | 360mm |
| Max.lateral process of the worktable | 630mm |
| Main motor power | 3kw |
| Overall Dimensions（L*W*H） | 2357×1225×1480mm |
| The weight of the machine | 1920kg |
