DESCRIPTION OF SHAPER MACHINE BC60100

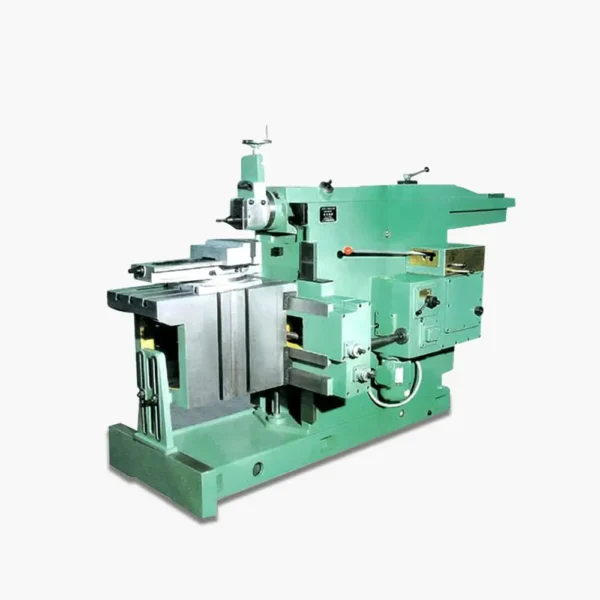

Shaper BC60100 is mainly used for planning the plane on the small and medium-sized workpieces in small bench production of a single piece, forming the surface and grooves. Planer bench can turning angel of the table with horizontal and lift moving mechanism; for planning the inclined plane, thereby expanding the scope of use.
CHARACTERISTICS OF BC60100
| Model | BC60100 |
| cutting length | 1000mm |
| Max.distance from the undersurface of ram to the worktable | 400mm |
| Max.working distance of knife rest | 160mm |
| The number of strokes per minute of the ram | 15、20、29、42、58、83 |
| Ram stroke reciprocating table for each level of the scope of the direction of feed | 0.3～3mm |
| Ram stroke each table vertically reciprocating feed range | 0.15～0.50mm |
| Table area（length*width） | 1000×500mm |
| Larger vertical stroke of the workbench | 380mm |
| Max.lateral process of the worktable | 800mm |
| Main motor power | 7.5kw |
| Overall Dimensions（L*W*H） | 4140×1950×1850mm |
| The weight of the machine | 4700kg |
