VIDEO ABOUT THE VERTICAL BAND SAW MACHINE TOOL S-360

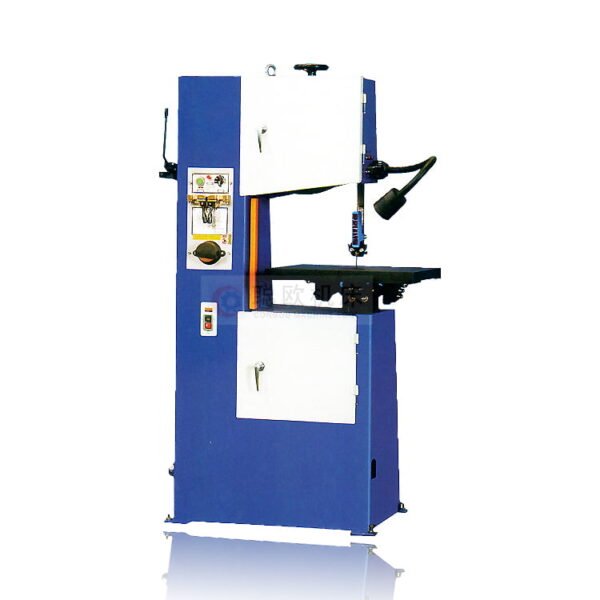

DESCRIPTION OF THE VERTICAL BAND SAW S-360
The S-360 vertical band saw is mainly suitable for sawing steel sheets, ferrous metals, etc. It consists of the following parts: saw frame, main transmission system, saw blade tension device, saw blade guide device, feeding system, material roller table, electrical system, saw blade teeth cleaning device and sawdust collection, etc.
Characteristics of S-360
| Model | S-360 |
| Maximum sawing capacity | 350mm |
| Maximum working height | 230mm |
| Bed table size | 430×500mm |
| Saw blade length | 2780mm |
| Saw blade width | 3-13mm |
| Bench tilt angle | 10 ° front and back, 15 ° left and right respectively |
| Main motor power 4P/8P/gearbox power | 1HP/-/1HP |
| Sawing speed 50HZ m/min | 31.51.76.127 |
| Welding power | 1.2kw |
| Welding ability | 3-13mm |
| Weight | 270kg |
| Contour size | 930×660×1590mm |
