VIDEO ABOUT THE VERTICAL BAND SAW MACHINE TOOL S-1000

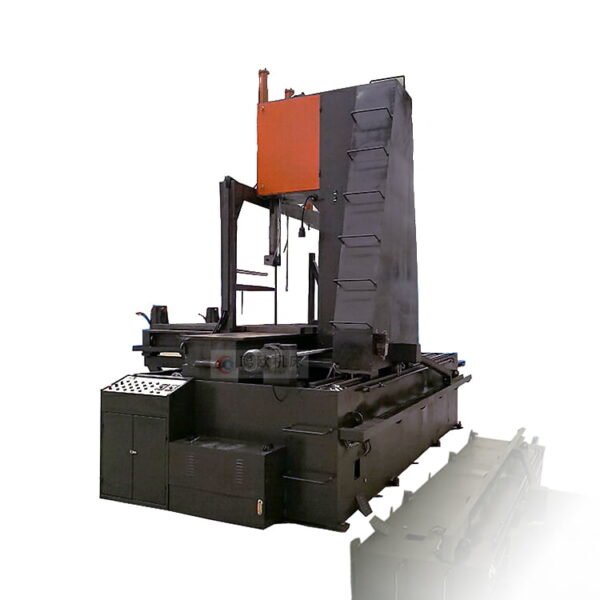

DESCRIPTION OF THE VERTICAL BAND SAW S-1000
The S-1000 vertical band saw is mainly suitable for sawing steel sheets, ferrous metals, etc. It consists of the following parts: saw frame, main transmission system, saw blade tension device, saw blade guide device, feeding system, material roller table, electrical system, saw blade teeth cleaning device and sawdust collection, etc.
Characteristics of S-1000
Model | S-1000 |
Maximum sawing capacity | 1000mm |
Maximum working height | 320mm |
Bed table size | 500×600×2mm |
Saw blade length | 4700mm |
Saw blade width | 3-16mm |
Bench tilt angle | Left fixed/front and rear 10 ° 15 ° left and right respectively“ |
Main motor power 4P/8P/gearbox power | 3.2HP/2HP/1HP |
Sawing speed 50HZ m/min | 27.43.65.108 53.85.127.212 |
Welding power | 2kw |
Welding ability | 3-16mm |
Weight | 650kg |
Contour size | 2140×910×1880mm |
