DISCRIPTION OF RADIAL DRILLING MACHINE AC2540

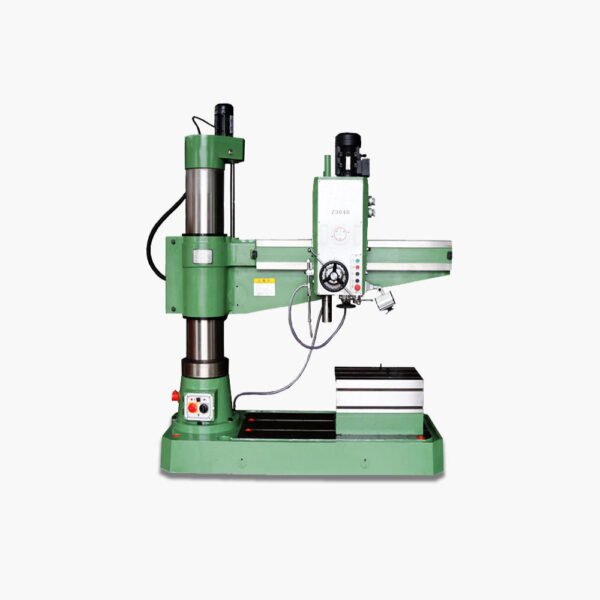

The AC2540 radial drilling machine is designed to perform drilling, reaming, countersinking, threading and trimming of ends. In the presence of additional equipment, which can be purchased for a fee, the machine is able to perform milling.
CHARACTRISTICS OF AC2540
| Model | AC2540 |
| Max.drilling diameter | 40mm |
| Distance between spindle axis and column | 300-1300mm |
| Distance between spindle nose and working surface of base | 300-1120mm |
| Spindle travel | 280mm |
| Spindle taper | MT4 |
| Range of spindle speeds | 32-2500rpm |
| Number of spindle speeds | 16step |
| Range of spindle feeds | 0.10-1.25mm/r |
| Number of spindle feeds | 8step |
| Table size | 600×450mm |
| Distance of headstock horizontal movement | 1000mm |
| Spindle motor power | 3kw |
| Machine weight | 2500kg |
| Overall dimension | 2100×900×2490mm |
