DISCRIPTION OF RADIAL DRILLING MACHINE 2A540

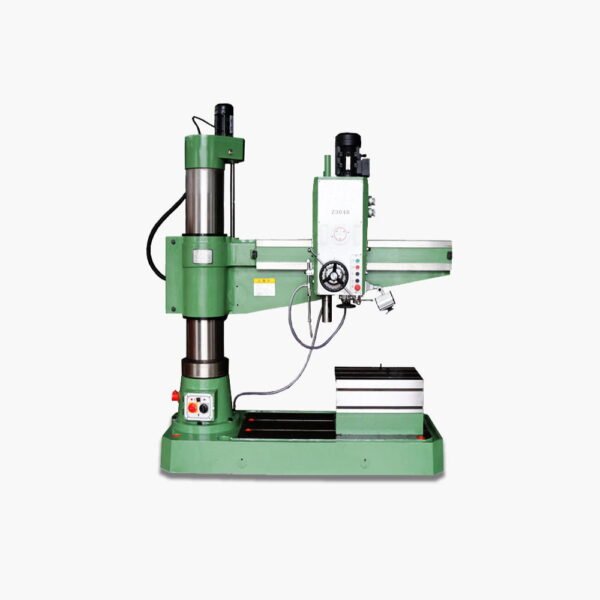

The 2A540 radial drilling machine is designed to perform drilling, reaming, countersinking, threading and trimming of ends. In the presence of additional equipment, which can be purchased for a fee, the machine is able to perform milling.
CHARACTRISTICS OF 2A540
Model | 2A540 |
Max.drilling dia. | 40mm |
Distance between spindle nose and table surface | 260-1210mm |
Distance from spindle axis to column surface | 350-1370mm |
Spindle travel | 270mm |
Spindle taper | MT4 |
Spindle speed range | 32-2500rpm |
Spindle speed steps | 16 |
Spindle feed range | 0.10-1.25mm/r |
Spindle feed steps | 8 |
Main motor power | 3kw |
Lifting motor power | 0.75kw |
Machine weight | 2200kg |
Overall dimension | 2053×820×2483mm |
