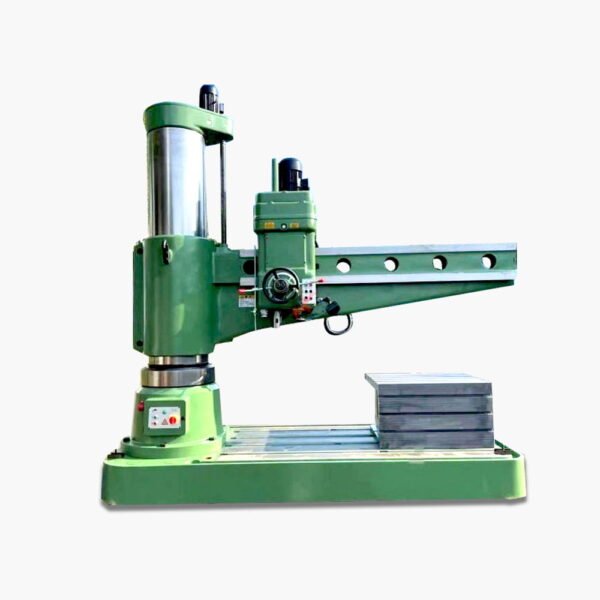

DISCRIPTION OF RADIAL DRILLING MACHINE 2A5125
The 2A5125 radial drilling machine is designed to perform drilling, reaming, countersinking, threading and trimming of ends. In the presence of additional equipment, which can be purchased for a fee, the machine is able to perform milling.
CHARACTRISTICS OF 2A5125
Model | 2A5125 |
Max.drilling dia. | 125mm |
Distance between spindle nose and table surface | 750-2500mm |
Distance from spindle axis to column surface | 600-4000mm |
Spindle travel | 560mm |
Spindle taper | Metric 80 |
Spindle speed range | 6.3-800rpm |
Spindle speed steps | 22 |
Spindle feed range | 0.06-3.2mm/r |
Spindle feed steps | 16 |
Main motor power | 18.5kw |
Rocker arm lift travel | 1250mm |
Machine weight | 28500kg |
Overall dimension | 4960×2000×4780mm |
