VIDEO ABOUT PNEUMATIC FORGING HAMMER WITH BASE
MK4126, mph. 25 kg

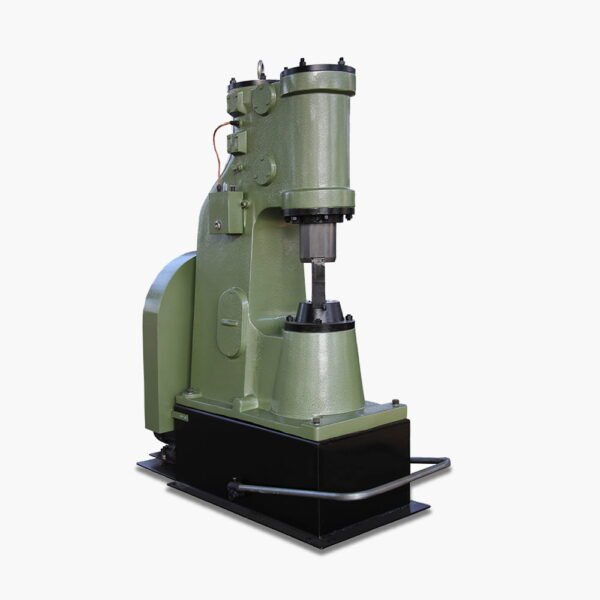

DESCRIPTION OF THE PNEUMATIC FORGING HAMMER WITH BASE MK4126, mph. 25 kg
MK4126 air hammer is one kind of the free forge hammer, this forge hammer is widely used for grnral forging works, such as drawing-out, upsetting, chiseling, forge, welding, bending and twisting. It is also used for forge in open forgr-model.
CHARACTERISTICS OF MK4126
Model | MK4126 |
Falling parts weight | 25kg |
Max striking capacity | 0.27kj |
Distance between lower working block and guide lower parts | 240mm |
No. of striking per minute | 250 |
Optimal forged section square side blanks | 40×40mm |
Optimal forged section blanks, round-diameter | Φ45mm |
Surface sizs of upper and lower blocks | 100×50mm |
Compression piston stroke | 140mm |
Motor power | 2.2kw |
Motor speed | 1440 |
Anvil weight | 247kg |
Weight | 720kg |
Overall size | 800×410×1613.5mm |
