VIDEO ABOUT PNEUMATIC FORGING HAMMER WITH BASE
MK4125, mph. 20 kg

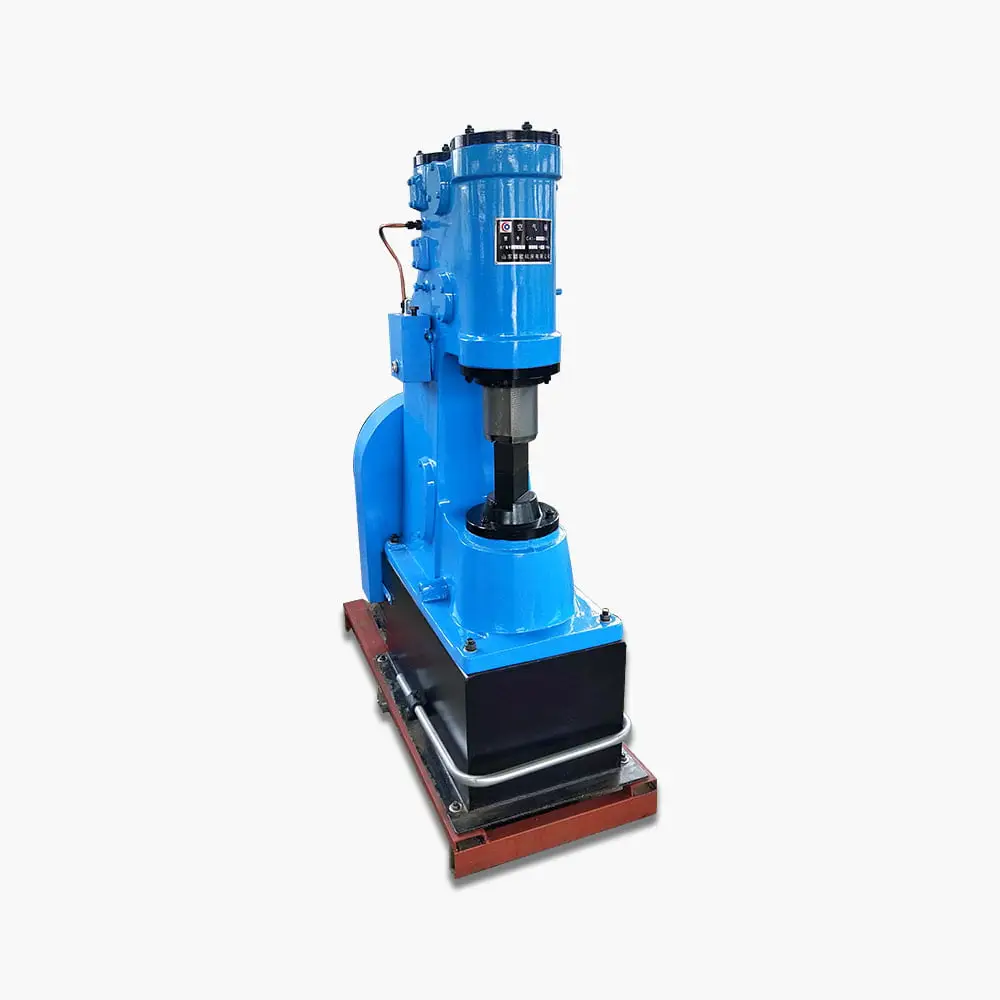

DESCRIPTION OF THE PNEUMATIC FORGING HAMMER WITH BASE MK4125, mph. 20 kg
MK4125 air hammer is one kind of the free forge hammer, this forge hammer is widely used for grnral forging works, such as drawing-out, upsetting, chiseling, forge, welding, bending and twisting. It is also used for forge in open forgr-model.
CHARACTERISTICS OF MK4125
Model | MK4125 |
Falling parts weight | 20kg |
Max striking capacity | 0.22kj |
Distance between lower working block and guide lower parts | 200mm |
No. of striking per minute | 255 |
Optimal forged section square side blanks | 30×30mm |
Optimal forged section blanks, round-diameter | Φ35mm |
Motor power | 2.2kw |
Motor speed | 1440 |
Anvil weight | 200kg |
Weight | 500kg |
Overall size | 670×369×1450mm |
