VIDEO ABOUT FORGING PNEUMATIC HAMMER MA4129, mph. 75 kg

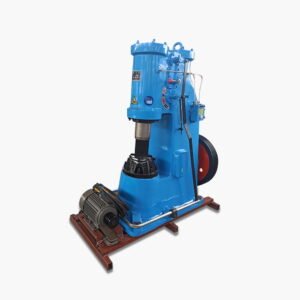

DESCRIPTION OF THE FORGE HAMMER MA4129,m.p.h. 75 kg
MA4129 air hammer is one kind of the free forge hammer, this forge hammer is widely used for grnral forging works, such as drawing-out, upsetting, chiseling, forge, welding, bending and twisting. It is also used for forge in open forgr-model.
CHARACTERISTICS OF MA4129
| Model | MA4129 |
| Falling parts weight | 75kg |
| Max striking capacity | 1kj |
| Distance between lower working block and guide lower parts | 300mm |
| No. of striking per minute | 210 |
| Optimal forged section square side blanks | 65×65mm |
| Optimal forged section blanks, round-diameter | Φ85mm |
| Surface sizs of upper and lower blocks | 145×65mm |
| Motor power | 7.5kw |
| Motor speed | 970 |
| Anvil weight | 850kg |
| Weight | 2800kg |
| Overall size | 1600×950×1950mm |
