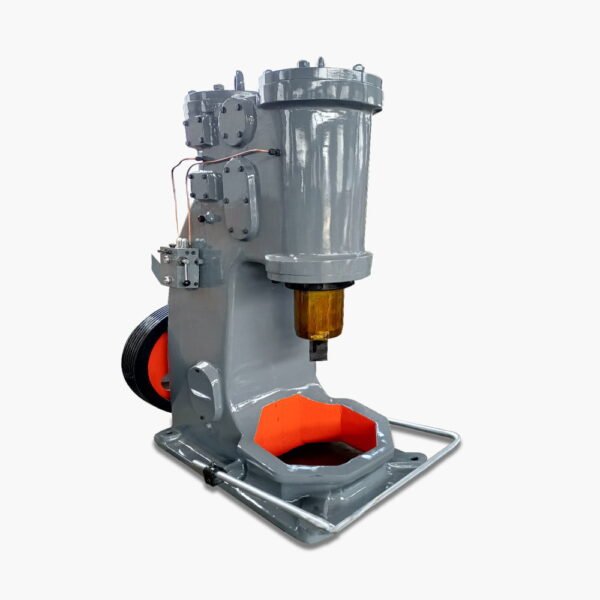

FORGING PNEUMATIC HAMMER M4136, mph. 400 kg

Type:Blacksmith Hammer
Model Number: M4136
Origin: Shandong, China
Key points of sale:Hammer
Trademark: Congou
Condition: New
Nominal mass of falling parts: 400kg
Outgoing Video check: Submitted
Size (L*W*H): 1100×500×1300 mm
Weight(kg): 8000
Color: Customizable
Engine power: 30kw

VIDEO ABOUT FORGING PNEUMATIC HAMMER M4136, mph. 400 kg

DESCRIPTION OF THE FORGE HAMMER M4136,m.p.h. 400 kg

M4136 air hammer is one kind of the free forge hammer, this forge hammer is widely used for grnral forging works, such as drawing-out, upsetting, chiseling, forge, welding, bending and twisting. It is also used for forge in open forgr-model.

CHARACTERISTICS OF M4136

Model	M4136
Falling parts weight	400kg
Max striking capacity	9.5kj
Distance between lower working block and guide lower parts	530mm
No. of striking per minute	120
Optimal forged section square side blanks	220×220mm
Optimal forged section blanks, round-diameter	Φ240mm
Motor power	30kw
Weight	8000kg
Overall size	1100×500×1300mm
