VIDEO ABOUT FORGING PNEUMATIC HAMMER M4132, mph. 150 kg

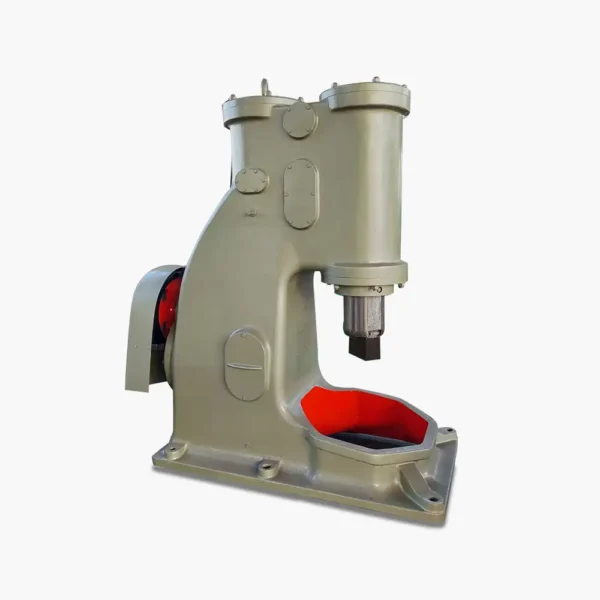

DESCRIPTION OF THE FORGE HAMMER M4132,m.p.h. 150 kg
M4132 air hammer is one kind of the free forge hammer, this forge hammer is widely used for grnral forging works, such as drawing-out, upsetting, chiseling, forge, welding, bending and twisting. It is also used for forge in open forgr-model.
CHARACTERISTICS OF M4132
Model | M4132 |
Falling parts weight | 150kg |
Max striking capacity | 2.5kj |
Distance between lower working block and guide lower parts | 370mm |
No. of striking per minute | 180 |
Optimal forged section square side blanks | 130×130mm |
Optimal forged section blanks, round-diameter | Φ145mm |
Surface sizs of upper and lower blocks | 200×80mm |
Motor power | 15kw |
Motor speed | 1470 |
Weight | 5000kg |
Overall size | 1865×1085×2150mm |
