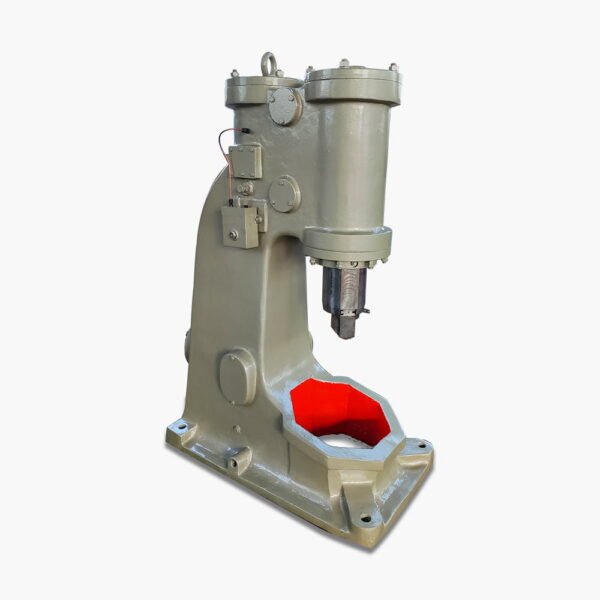

FORGING PNEUMATIC HAMMER M4126, mph. 25 kg

Type:Blacksmith Hammer
Model Number: M4126
Origin: Shandong, China
Key points of sale:Hammer
Trademark: Congou
Condition: New
Nominal mass of falling parts: 25kg
Outgoing Video check: Submitted
Size (L*W*H): 800×410×1213.5 mm
Weight(kg): 720
Color: Customizable
Engine power: 2.2kw

VIDEO ABOUT FORGING PNEUMATIC HAMMER M4126, mph. 25 kg

DESCRIPTION OF THE FORGE HAMMER M4126,m.p.h. 25 kg

M4126 air hammer is one kind of the free forge hammer, this forge hammer is widely used for grnral forging works, such as drawing-out, upsetting, chiseling, forge, welding, bending and twisting. It is also used for forge in open forgr-model.

CHARACTERISTICS OF M4126

Model	M4126
Falling parts weight	25kg
Max striking capacity	0.27kj
Distance between lower working block and guide lower parts	240mm
No. of striking per minute	250
Optimal forged section square side blanks	40×40mm
Optimal forged section blanks, round-diameter	Φ45mm
Surface sizs of upper and lower blocks	100×50mm
Compression piston stroke	140mm
Motor power	2.2kw
Motor speed	1440
Anvil weight	247kg
Weight	720kg
Overall size	800×410×1213.5mm
