VIDEO ABOUT FORGING PNEUMATIC HAMMER M4125, mph. 20 kg

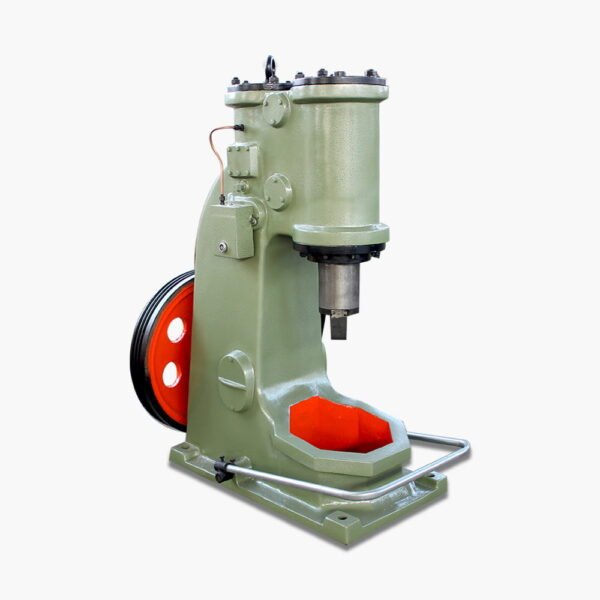

DESCRIPTION OF THE FORGE HAMMER M4125,m.p.h. 20 kg
M4125 air hammer is one kind of the free forge hammer, this forge hammer is widely used for grnral forging works, such as drawing-out, upsetting, chiseling, forge, welding, bending and twisting. It is also used for forge in open forgr-model.
CHARACTERISTICS OF M4125
Model | M4125 |
Falling parts weight | 20kg |
Max striking capacity | 0.22kj |
Distance between lower working block and guide lower parts | 200mm |
No. of striking per minute | 255 |
Optimal forged section square side blanks | 30×30mm |
Optimal forged section blanks, round-diameter | Φ35mm |
Motor power | 2.2kw |
Motor speed | 1440 |
Anvil weight | 200kg |
Weight | 500kg |
Overall size | 670×369×1050mm |
