VIDEO ABOUT HORIZONTAL MILLING MACHINE 6K82

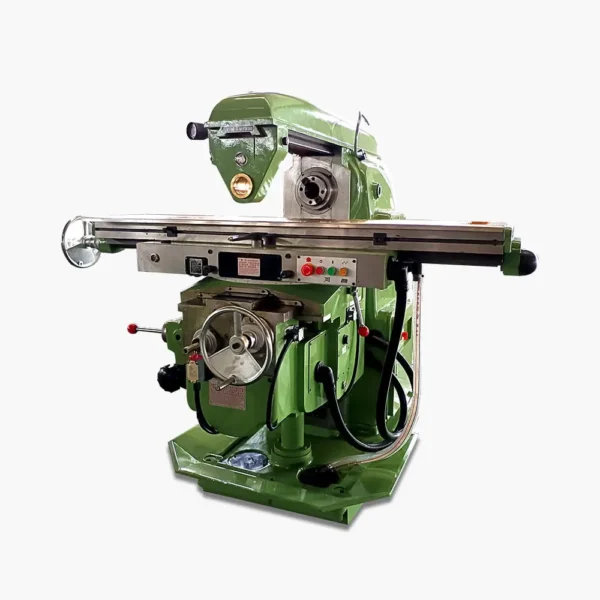

DESCRIPTIONS OF HORIZONTAL MILLING MACHINE 6K82
The horizontal cantilever milling machine is designed for processing planes, grooves, stamp models, molds and other parts by milling, and also serves for processing various holes in parts made of steel, cast iron, non-ferrous metals and their alloys, plastics. The milling machine has a horizontal spindle.
CHARACRISTICS OF 6K82
| Model | 6K82 |
| Table size | 1500*320mm |
| T slot(number-width*pitch) | 3-16*70 |
| Table travel | 1000/300/400mm |
| Spindle taper | ISO40 7:24 |
| Range of spindle speeds | 40-1300rpm |
| Distance between spindle nose and working surface of base | 0-400mm |
| Spindle motor power | 3kw |
| Machine weight | 2050kg |
| Overall dimension | 2070*1900*1850mm |
