VIDEO ABOUT HORIZONTAL MACHINING CENTER 80H
DESCRIPTION OF HORIZONTAL MACHINING CENTER 80H

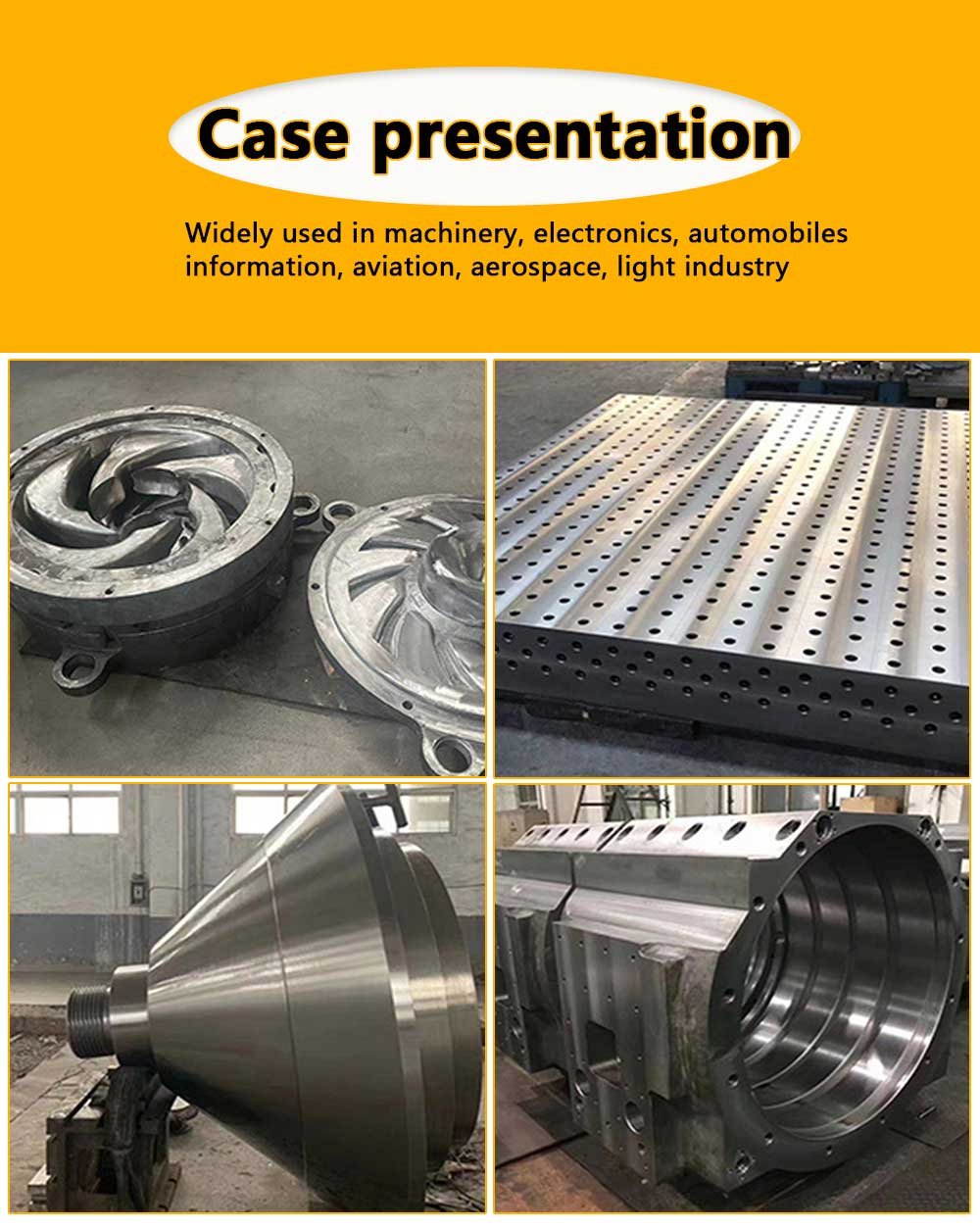

The H-series horizontal CNC machining center is a processing equipment mainly used for processing car bodies, car bodies, and formed parts. Commonly used in the production of automotive engine casings, molds, and other related parts, it is very suitable for the general machinery manufacturing industry. In the production process, first-class research and development technologies such as 3D synchronous design and finite element analysis are adopted, combined with the use of N improvements. Its reasonable layout ensures that the main components have good deformation resistance and bending performance, with ultra-high stability and accuracy.

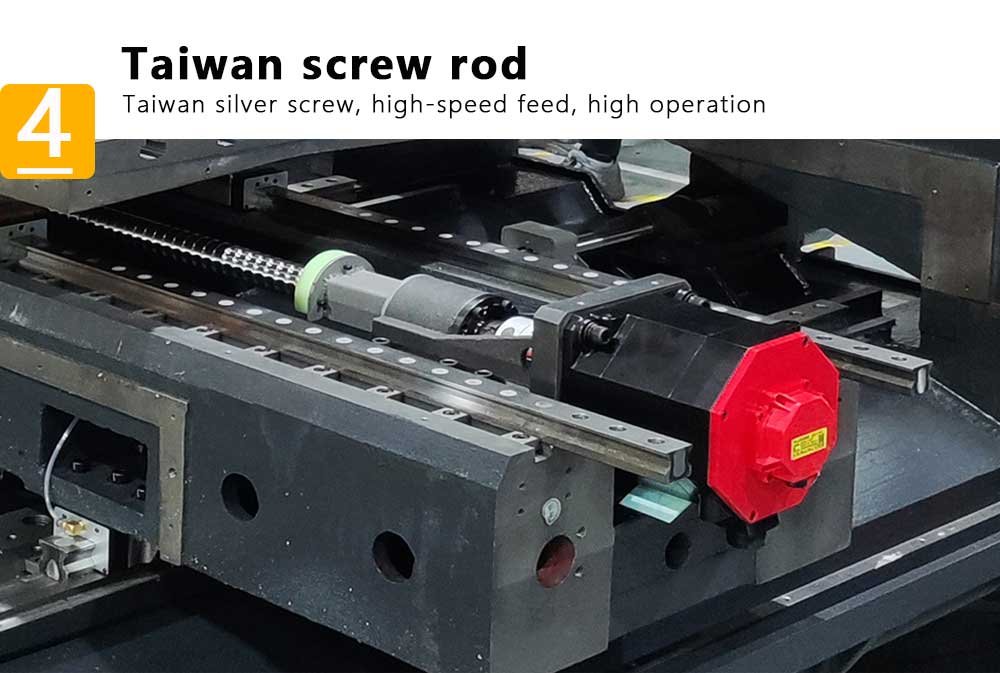

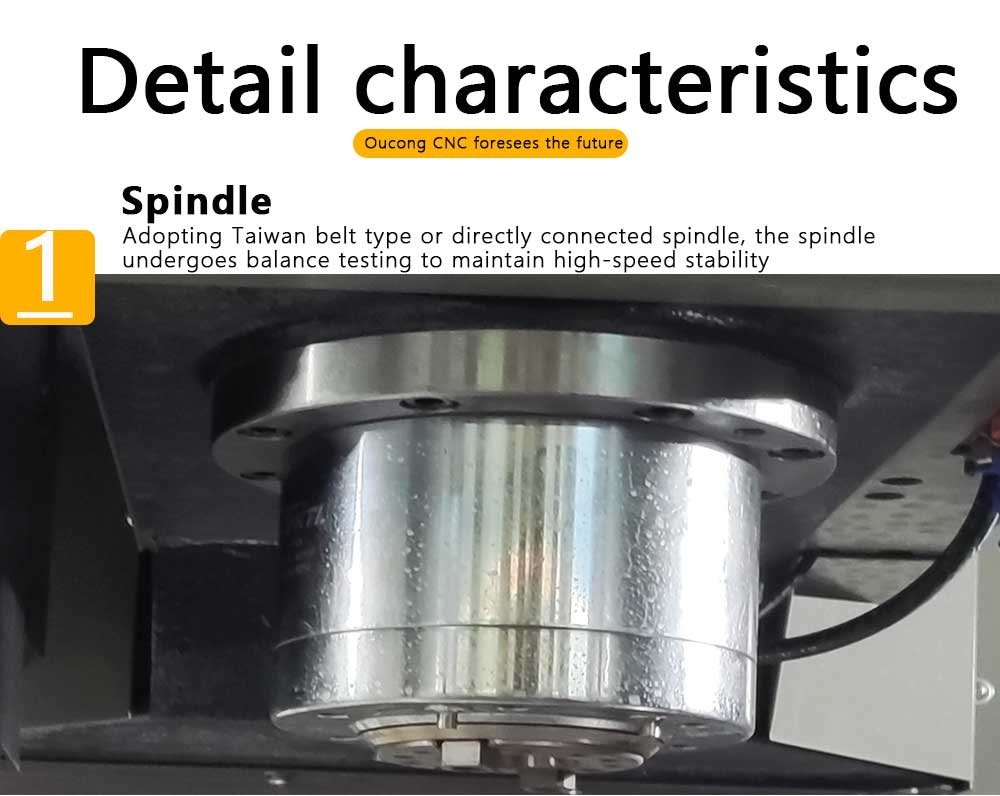

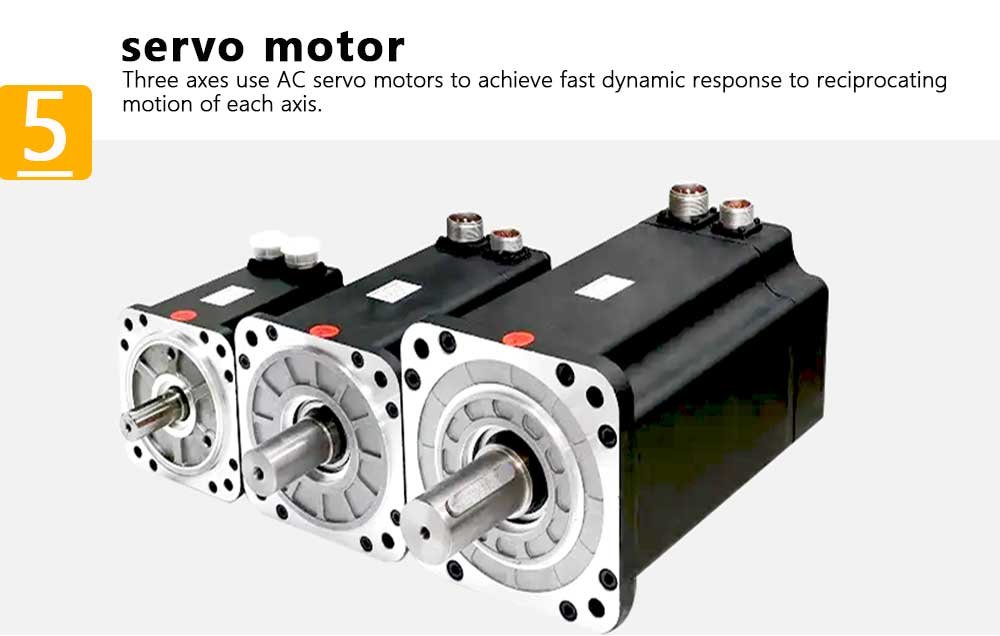

CHARACTERISTICS OF 80H
| Model | 63H |
|---|---|
| Table size | 630*630mm |
| X axis travel | 1050mm |
| Z axis travel | 900mm |
| Y axis travel | 700mm |
| Distance from spindle center to table surface | 120-870mm |
| Distance between spindle nose and table center | 130-1030mm |
| Table quantity | 1pcs |
| T slot(number-width*pitch) | 5-22*125mm |
| Max. worktable load | 800kg |
| Table indexing | 1°*360 |
| Maximum speed of table | 10r/min |
| Main motor power | 15/18.5kw |
| Spindle taper | BT50-190 |
| Max. spindle speed | 6000rpm |
| Cutting feed speed | 1-10000mm/min |
| Rapid traverse speed | 36 / 20/ 24m/min |
| Tool magazine | Arm30 |
| Max. tool diameter | 112/200mm |
| Max. tool length | 400mm |
| Max. tool weight | 18kg |
| Tool change time (tool to tool) | 3sec |
| Machine minimum setting unit | 0.001mm |
| X,Y,Z axis positioning accuracy | 0.012mm |
| X,Y,Z axis repeat positioning accuracy | 0.008mm |
| B axis positioning accuracy | 10″ |
| B axis repeat positioning accuracy | 5″ |
| Machine weight | 12000kg |
| Overall dimension(L*W*H) | 4850*3600*3200mm |
