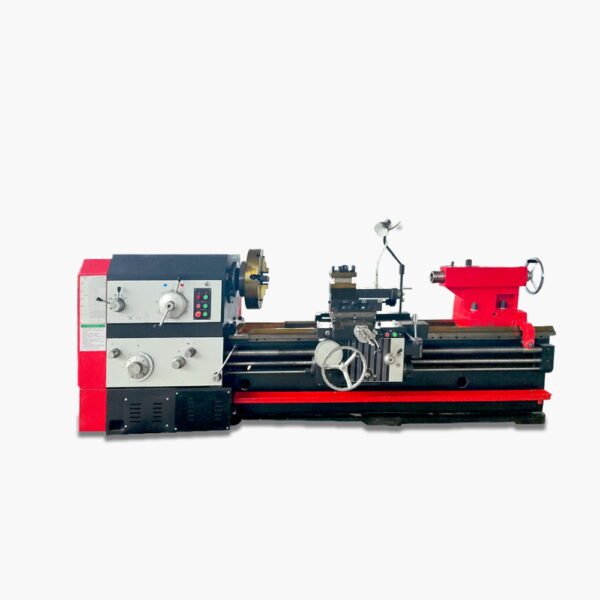

HORIZONTAL LATHE MACHINE LM-800

Type:Horizontal lathe machine
Model Number: LM-800
Origin: Shandong, China
Key points of sale: Horizontal lathe
Trademark: Congou
Condition: New
Swing over bed : 800mm
Outgoing Video check: Submitted
Size (L*W*H): 2440/2650/3150/3650/4030/4800/5680*1150*2000mm
Weight(kg): 2400/2670/2920/3170/3300/4100/4600
Color: Customizable
Engine power: 11kw

VIDEO ABOUT HORIZONTAL LATHE MACHINE LM-800

DESCRIPTION OF HORIZONTAL LATHE MACHINE LM-800

1. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.

2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.

3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.

4. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.

CHARACTERISTICS OF LM-800

Model	LM-800
Swing over bed	800mm
Swing over carriage	540mm
Distance between centers	750/1000/1500/2000/3000mm
Spindle bore	B:80/C:105mm
Taper of spindle	B:90 1:20/C:113 1:20
Step of spindle speed	24
Spindle speed range	10-1400/16-1400rpm
Cross slide travel	320mm
Compound travel	140mm
Blade size	25*25mm
Longitudinal feed rate range	0.028-6.33mm/r
Cross feed range	0.014-3.16mm/r
Kinds of metric threads	44kinds
Range of metric threads	1-192mm
Kinds of inch threads	21kinds
Range of inch threads	2-24T.P.I
Kinds of threads module	39kinds
Range of threads module	0.25-48MP
Barrel travel	75mm
Barrel diameter	MT5
Taper of center	150mm
Main motor power	11kw
Cooling pump motor power	0.09kw
Machine weight	2400/2670/2920/3170/3300/4100/4600kg
Overall dimension	2440/2650/3150/3650/4030/4800/568011502000mm
