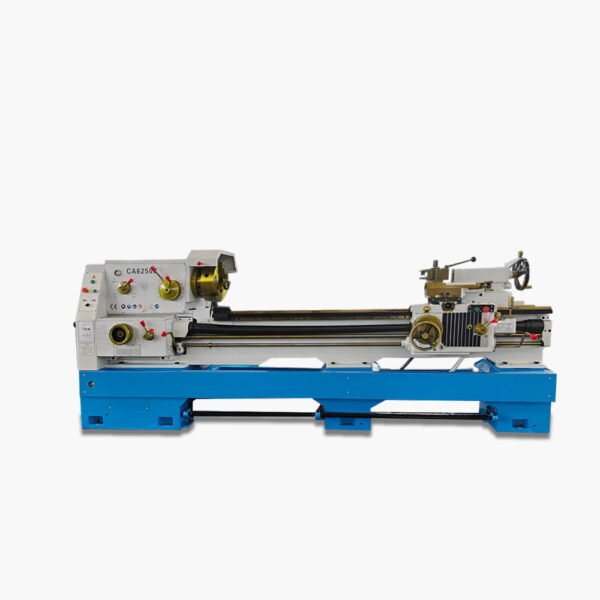

DESCRIPTION OF HORIZONTAL LATHE MACHINE LC-500
1. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.
2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.
3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.
4. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.
CHARACTERISTICS OF LC-500
| Model | LC-500 |
| Swing over bed | 500mm |
| Swing over carriage | 300mm |
| Swing over gap | 720mm |
| Distance between centers | 750/1000/1500/2000/2200/3000/4000mm |
| Spindle bore | 105mm |
| Taper of spindle | MT6 |
| Step of spindle speed | 24 |
| Spindle speed range | 16-1400rpm |
| Blade size | 25*25mm |
| Kinds of metric threads | 44kinds |
| Range of metric threads | 1-192mm |
| Kinds of inch threads | 21kinds |
| Range of inch threads | 2-24T.P.I |
| Kinds of threads module | 39kinds |
| Range of threads module | 0.25-48MP |
| Barrel travel | 75mm |
| Barrel diameter | MT5 |
| Taper of center | 150mm |
| Main motor power | 7.5kw |
| Machine weight | 2061/2140/2290/2640/2790/3300/3600kg |
| Overall dimension | 2550/2700/3200/3700/4030/4850/5800*1140*1750mm |
