VIDEO ABOUT THE ANGLE HORIZONTAL METAL CNC BAND SAWING MACHINE GOZ-300X
DESCRIPTION OF ANGULAR HORIZONTAL METAL CNC BAND SAWING MACHINE GOZ-300X

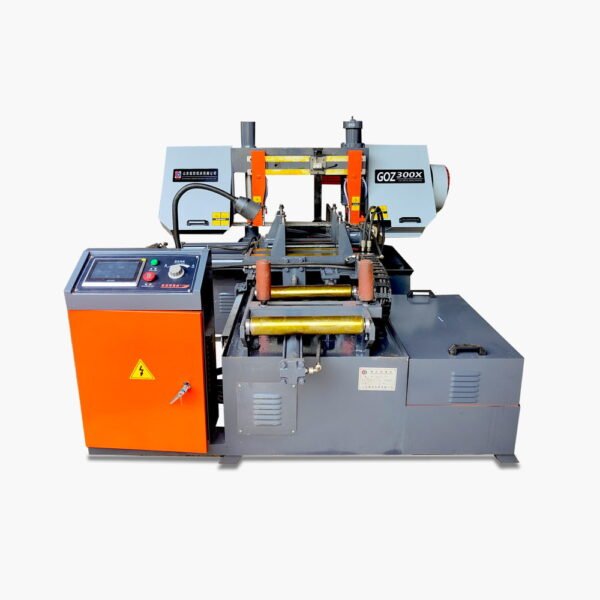

GOZ-300X Angel horizontal metal band saw, this band saw is mainly used for sawing small and medium round pipes, square steel pipes, profiles, etc. In addition to sawing at 0°, it can also perform sawing at an angle of 0-45°. The feeding uses hydraulic automatic feeding, automatic length fixing, PLC programmable control, touch screen operation, and a lattice ruler determines the length of the sawing. It has the advantages of narrow sawing gap, material saving, energy saving, high sawing accuracy, convenient operation and high production efficiency.
CHARACTERISTICS OF GOZ-300X
| Model | GOZ-300X |
| Cutting range 0° | Φ300mm □300×300mm |
| Cutting range 45° | Φ240mm □240×240mm |
| Cutting range 60° | Φ90mm □90×900mm |
| Single feed stroke | 500mm |
| Single precision | ±0.02mm |
| Band saw specifications | 3630×27×0.9mm |
| Saw belt wheel speed | 27/45/69 m/min |
| Stepping up methods | Hydraulic vice |
| Main motor power | 3kw |
| Hydraulic motor power | 1.1kw |
| Cooling pump motor power | 125w |
| Contour size | 2370×1800×1400mm |
