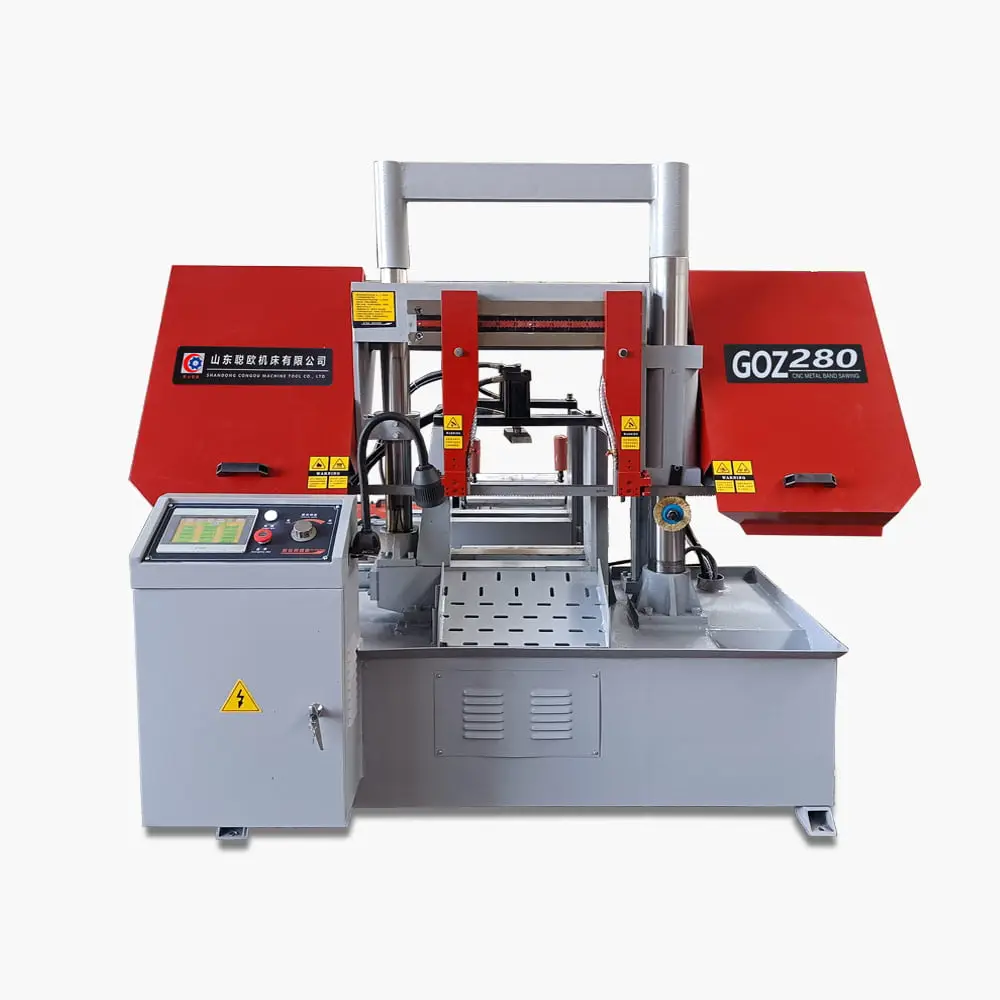

DESCRIPTION OF THE FULLY AUTOMATIC BAND SAW MACHINE GOZ-280
Fully automatic CNC sawing machine GOZ-280, is suitable for continuous cutting in mass production. Manual and automatic dual functions. Using PLC control system, one or more sets of data can be set for continuous cutting.
Characteristics of GOZ-280 machines
Model | GOZ-280 |
Cutting range | 280mm |
Cutting range | 280×280mm |
Single feeding stroke | 500mm |
Single precision | ±0.02mm |
Band saw specifications | 3630×27×0.9mm |
Saw belt wheel speed | 27/45/69 m/min |
Stepping up methods | Hydraulic vice |
Main motor power | 3kw |
Hydraulic motor power | 0.75kw |
Cooling pump motor power | 90w |
Contour size | 2370×1800×1400mm |
