VIDEO ABOUT ANGEL HORIZONTAL METAL TAPE MACHINE GO-800X

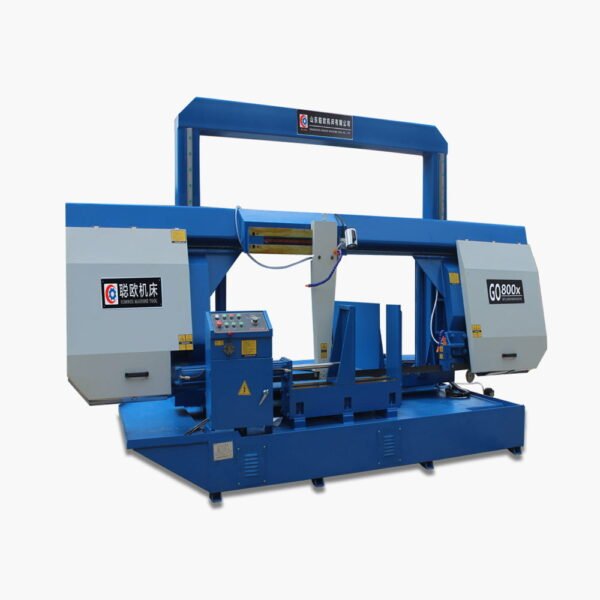

DESCRIPTION OF ANGEL HORIZONTAL METAL BELT MACHINE
GO-800X
Angel horizontal metal belt machine GO-800X, created by Taiwanese technology, the design of scissors allows you to cut all kinds of ferrous and non-ferrous metals. Various molds can be installed, and the stamping angle is 45 degrees, 60 degrees and 90 degrees. The molds can be replaced.
Characteristics of GO-800X machines
Model | GO-800X |
Cutting range 0° | Φ800mm □800×800mm |
Cutting range 45° | Φ600mm □600×600mm |
Cutting range 60° | Φ450mm □450×450mm |
Band saw specifications | 7800×70×2.1mm |
Saw belt wheel speed | 27/45/69 m/min |
Stepping up methods | Hydraulic vice |
Main motor power | 7.5kw |
Hydraulic motor power | 1.5kw |
Cooling pump motor power | 125w |
Contour size | 4500×3000×2800mm |
