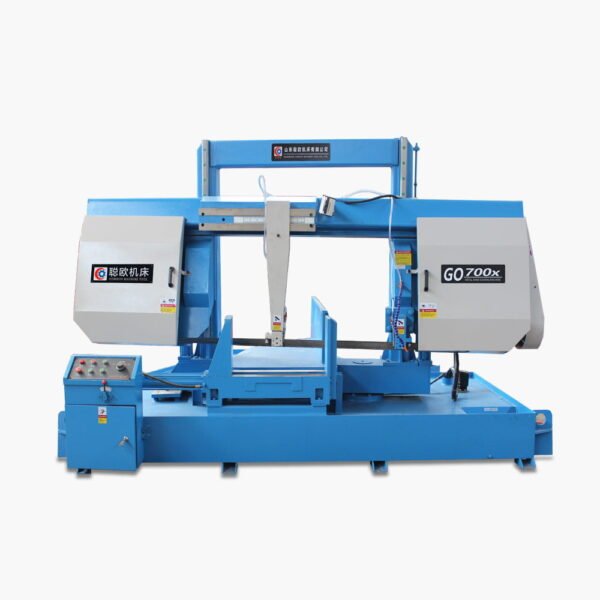

VIDEO ABOUT ANGEL HORIZONTAL METAL TAPE MACHINE GO-700X
DESCRIPTION OF ANGEL HORIZONTAL METAL BELT MACHINE
GO-700X
Angel horizontal metal belt machine GO-700X, created by Taiwanese technology, the design of scissors allows you to cut all kinds of ferrous and non-ferrous metals. Various molds can be installed, and the stamping angle is 45 degrees, 60 degrees and 90 degrees. The molds can be replaced.
Characteristics of GO-700X machines
| Model | GO-700X |
| Cutting range 0° | Φ700mm □700×700mm |
| Cutting range 45° | Φ500mm □500×500mm |
| Cutting range 60° | Φ350mm □350×350mm |
| Band saw specifications | 7500×64×1.6mm |
| Saw belt wheel speed | 27/45/69 m/min |
| Stepping up methods | Hydraulic vice |
| Main motor power | 7.5kw |
| Hydraulic motor power | 1.5kw |
| Cooling pump motor power | 125w |
| Contour size | 4100×2800×2500mm |
