VIDEO ABOUT ANGEL HORIZONTAL METAL TAPE MACHINE GO-400X

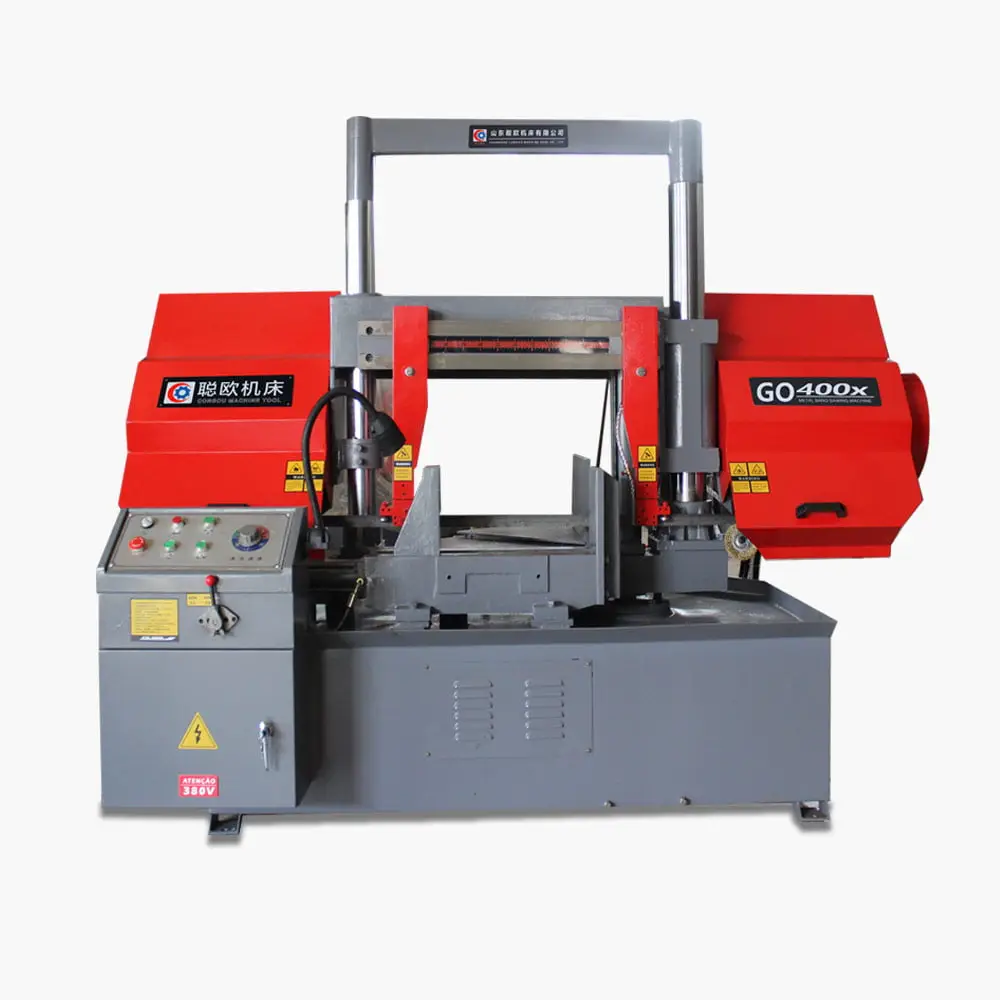

DESCRIPTION OF ANGEL HORIZONTAL METAL BELT MACHINE
GO-400X
Angel horizontal metal belt machine GO-400X, created by Taiwanese technology, the design of scissors allows you to cut all kinds of ferrous and non-ferrous metals. Various molds can be installed, and the stamping angle is 45 degrees, 60 degrees and 90 degrees. The molds can be replaced.
Characteristics of GO-400X machines
Model | GO-400X |
Cutting range 0° | Φ400mm □400×400mm |
Cutting range 45° | Φ300mm □300×300mm |
Cutting range 60° | Φ200mm □200×200mm |
Band saw specifications | 5000×34×1.1mm |
Saw belt wheel speed | 27/45/69 m/min |
Stepping up methods | Hydraulic vice |
Main motor power | 4kw |
Hydraulic motor power | 1.5kw |
Cooling pump motor power | 90w |
Contour size | 2600×1500×2050mm |
