VIDEO ABOUT ANGEL HORIZONTAL METAL TAPE MACHINE GO-1000X

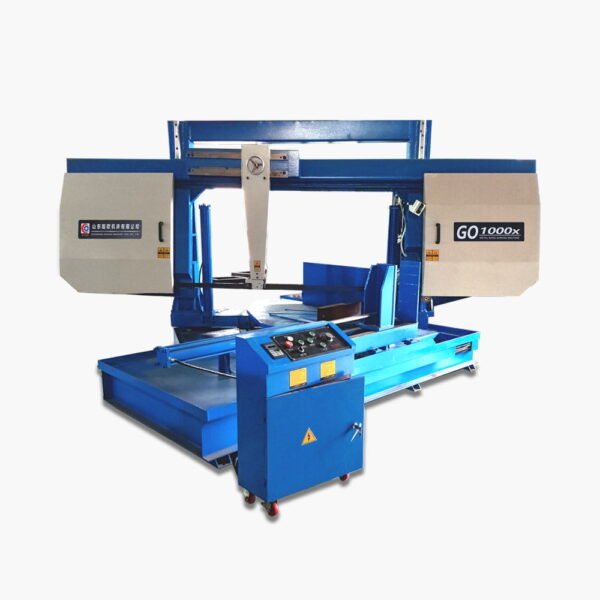

DESCRIPTION OF ANGEL HORIZONTAL METAL BELT MACHINE
GO-1000X
Angel horizontal metal belt machine GO-1000X, created by Taiwanese technology, the design of scissors allows you to cut all kinds of ferrous and non-ferrous metals. Various molds can be installed, and the stamping angle is 45 degrees, 60 degrees and 90 degrees. The molds can be replaced.
Characteristics of GO-1000X machines
| Model | GO-1000X |
| Cutting range 0° | Φ1000mm □1000×1000mm |
| Cutting range 45° | Φ800mm □800×800mm |
| Cutting range 60° | Φ450mm □450×450mm |
| Band saw specifications | 7800×70×2.1mm |
| Saw belt wheel speed | 27/45/69 m/min |
| Stepping up methods | Hydraulic vice |
| Main motor power | 7.5kw |
| Hydraulic motor power | 1.5kw |
| Cooling pump motor power | 125w |
| Contour size | 5500×4000×3000mm |
