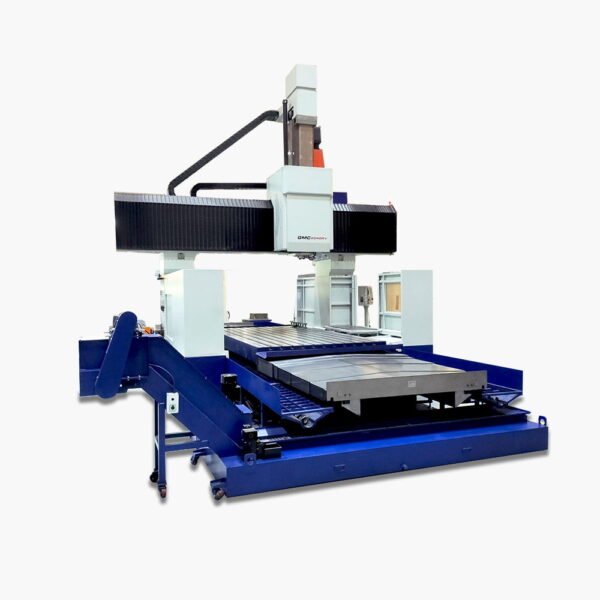

GANTRY MACHINING CENTER G-V1611

  • Type:Gantry machining center
  • Model Number:G-V1611
  • Origin: Shandong, China
  • Key Points Of Sale:Gantry
  • Trademark: Congou
  • Condition: New
  • X/Y/Z axis coordinate stroke: 1600/1100/800mm
  • Outgoing Video Check: Submitted
  • Size (L*W*H): 3800*2400*3200mm
  • Weight(Kg): 12000
  • Color: Customizable
  • Spindle motor power: 11/15kw
Get A Quote
Contact Us

VIDEO ABOUT GANTRY MACHINING CENTER G-V1611

DESCRIPTION OF GANTRY MACHINING CENTER G-V1611

The portal-processing center with numerical control is designed for roughing and finishing large-sized products made of ferrous, non-ferrous metals and alloy steels. Designed for milling, drilling, deployment, threading.

The portal structure consists of two columns, on which a horizontal beam with guides is fixed, along which the spindle moves. This design of the machine allows you to process large-sized workpieces, provides additional rigidity, accuracy and durability of the structure.
The bed is a massive structure made of modified cast iron. To achieve the best surface accuracy and rigidity of the entire structure, the joining surfaces of the base of the bed, columns and portal are scraped manually.
In the X and Y axis displacement system, HIWIN linear roller guides are used, which can withstand heavy loads, have high dynamic characteristics and a low coefficient of friction  The linear guides and ballscrews of the X and Y axes are protected from coolant, dirt and chips by telescopic casings.
The machine uses a spindle assembly of high rigidity. For precise transmission and increased torque, a ZF gearbox manufactured in Germany is used. The spindle is cooled using oil cooling and thermoregulation, which removes heat from the spindle, ensuring a stable temperature inside the machine, and increases thermal stability, thereby achieving high processing accuracy.
The Z—axis is made in the form of a square slider 400 × 400 mm and with sliding guides.

CHARACTERISTICS OF G-V1611

Model80H
Table size800*800mm
X axis travel1300mm
Z axis travel1000mm
Y axis travel1000mm
Distance from  spindle center to table surface150-1150mm
Distance between spindle nose and table center200-1200mm
Table quantity1pcs
T slot(number-width*pitch)5-22*125mm
Max. worktable load1500kg
Table indexing1°*360
Maximum speed of table10r/min
Main motor power15/18.5kw
Spindle taperBT50-190
Max. spindle speed6000rpm
Cutting feed speed1-10000mm/min
Rapid traverse speed24 / 20/ 24m/min
Tool magazineArm30
Max. tool diameter112/200mm
Max. tool length400mm
Max. tool weight18kg
Tool change time (tool to tool)3sec
Machine minimum setting unit0.001mm
X,Y,Z axis positioning accuracy0.012mm
X,Y,Z axis repeat positioning accuracy0.008mm
B axis positioning accuracy10″
B axis repeat positioning accuracy5″
Machine weight17000kg
Overall dimension(L*W*H)5050*3800*3300mm
