VIDEO ABOUT DRILLING AND MILLING MACHINE SBM-50T

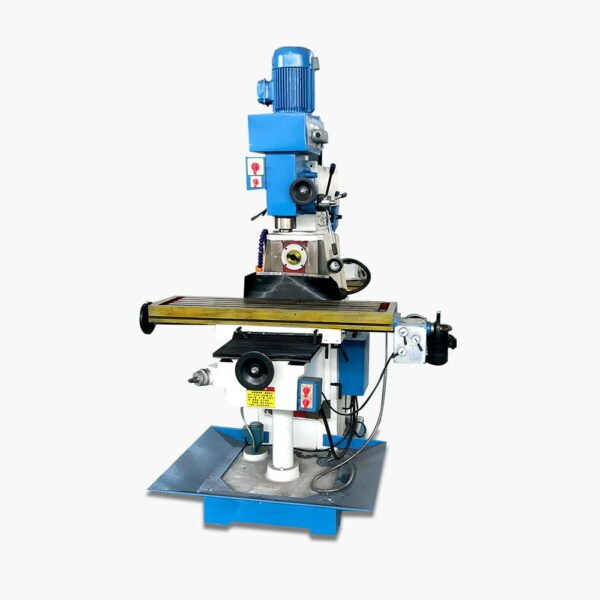

DISCRIPTION OF DRILLING AND MILLING MACHINE SBM-50T
The machine is a massive rigid structure consisting of a movable milling head, guides, a movable desktop. The milling head can rotate around a vertical axis. Switching speeds of the horizontal spindle is carried out by rearranging the V-belt on the corresponding pulleys.
CHARACTRISTICS OF SBM-50T
| Model | SBM-50T |
| Max.drilling diameter | 50mm |
| Max.end milling dia. | 100mm |
| Max.vertical milling dia. | 25mm |
| Max.boring dia. | 120mm |
| Max.tapping dia | M16 |
| Distance between spindle nose and working surface of base | 90-490mm |
| Spindle taper | MT4 |
| Range of spindle speeds | 40-1400rpm |
| Spindle travel | 120mm |
| Table size | 1000*240mm |
| Table travel | 600*240mm |
| Table feed speed | X:15-490mm/min |
| Spindle motor power | 1.5/2.2kw |
| Machine weight | 1000kg |
| Overall dimension | 1400*1300*2080mm |
