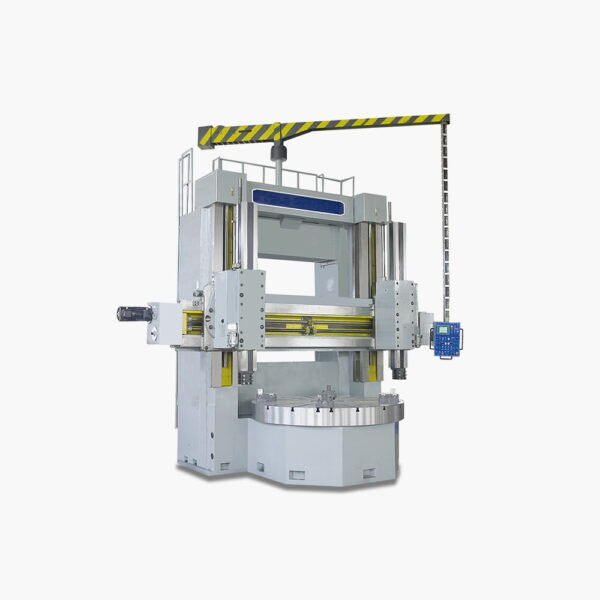

DOUBLE COLUMN VERTICAL LATHE MACHINE C5240

  • Type: Double column vertical lathe machine
  • Model Number: C5240
  • Origin: Shandong, China
  • Key points of sale:Vertical lathe
  • Trademark: Congou
  • Condition: New
  • Table diameter : 3200mm
  • Outgoing Video check: Submitted
  • Size (L*W*H): 6900*5050*5200mm
  • Weight(kg): 42000
  • Color: Customizable
  • Engine power: 11kw
Get A Quote
Contact Us

VIDEO ABOUT DOUBLE COLUMN VERTICAL LATHE MACHINE C5240

DESCRIPTION OF DOUBLE COLUMN VERTICAL LATHE MACHINE C5240

The base part of the whole cast body parts, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough processing. In the guide column adopt grinding, light and RAM guide adopt after processing grinding quenching intermediate frequency.
The main gearbox is driven by an AC motor, the speed change of the main drive with 16 steps is controlled by electromagnetic valves. All gears in the gearshift housing in the cabin adopt high frequency quenching. The work table is clean and can accept sliding and static pressure in the guide rail.
Feeding horizontal and vertical vertical tool-post use ball screw driving driven by BU AC servo motor, so as to realize automation. Left and right tool – after taking the hydraulic balance by sliding the guideway in the horizontal and vertical direction, and insert the guideway high strength PTFE soft belt.
The hydraulic system is equipped with a Germany traffic transmission device, so as to guarantee the stability of the oil flow on the workbench lubrication.
The machine uses PLC control, high reliability, wiring according to the execution process.
Beautiful appearance, consistency, convenient operation and maintenance.
According to customer’s raquirement, we can provide under the action of electric drive spindle grinding cylinder head, cooling device, DRO, etc.
Equipped with a CNC system depending on the customer.
Adopt Chinese famous product quality level.

CHARACTERISTICS OF C5240

ModelC5240
Table diameter3200mm
Max.Turning diameter4000mm
Max.Height of workpiece1600T
Max.Weight of workpiece16mm
Table speed range16
Table speed steps2~63r/min
Max.Ttorque of table63kN.m
Right vertical tool holder maximum cutting tool35kN
Horizontal stroke of right vertical tool holder-50~2150mm
Right ram vertical travel1000mm
Right vertical tool rest feed range0.24-145mm/min
Maximum cutting force of left vertical tool holder28kN
Left vertical tool holder horizontal stroke-50~2150mm
Left ram vertical travel1000mm
Left vertical tool rest feed range0.24-145mm/min
Vertical tool holder mobility limit’-30°~+30°
Section of ram255x200mm
Knife bar section40x50mm
Vertical tool holder fast movement speed1550mm/min
Max.Travel of cross beam1250mm
Cross beam lifting speed350mm/min
Cross beam lifting motor power11kw
Main motor powerAC55kw
Machine weight42000kg
Overall dimension6900*5050*5200mm
