VIDEO ABOUT CNC MILLING MACHINE 67K36

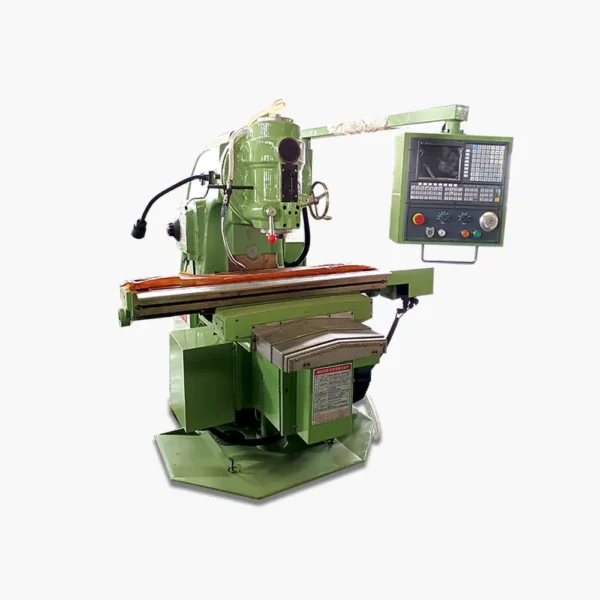

DESCRIPTION OF CNC MILLING MACHINE 67K36
The wide-universal milling machine is designed for milling parts with cylindrical, disc and shaped milling cutters using a horizontal spindle, and end, end and keyway milling cutters using a rotary vertical spindle. Drilling and reaming, chiseling, caulking, countersinking, deployment, boring can also be performed on the machine.

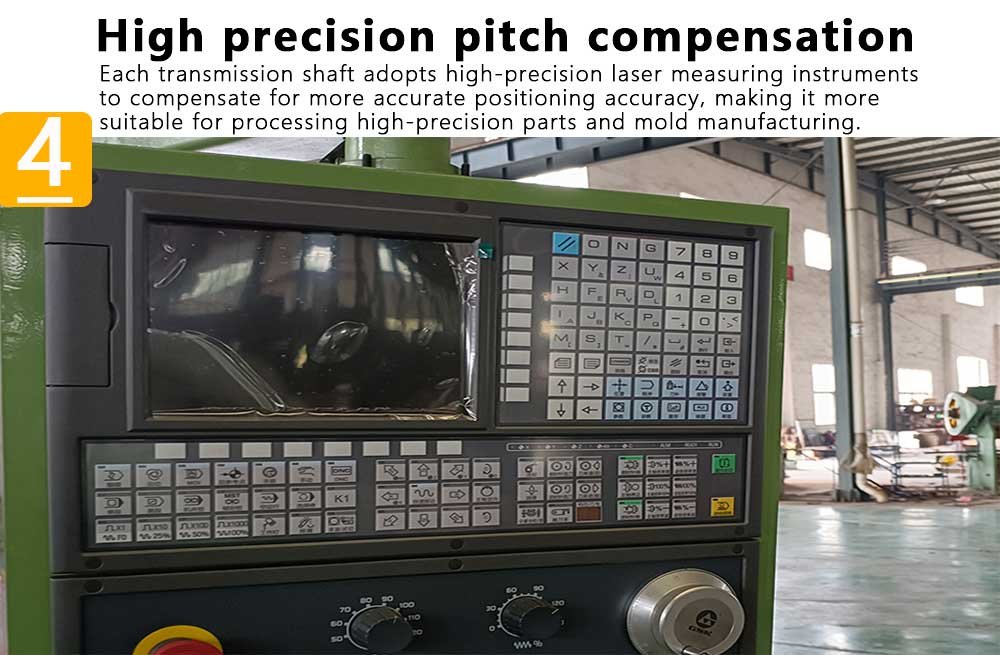

The milling machine is an innovative development, equipped with an operational programming system, which allows it to be used both in manual mode and automatically according to programs for processing rectilinear contours.
The machine is used in single and small-scale production in tool and mechanical workshops of machine-building enterprises.
CHARACTRICTICS OF CNC MILLING MACHINE 67K36
| Model | 67K36 |
| X / Y /Z axis route | 900/400/500mm |
| Distance between spindle nose and working surface of base | 100-600mm |
| Distance from the center of the spindle to the guide column | 460mm |
| Spindle speed range | 8000rpm |
| Spindle taper | BT40 |
| Spindle motor power | 5.5kw |

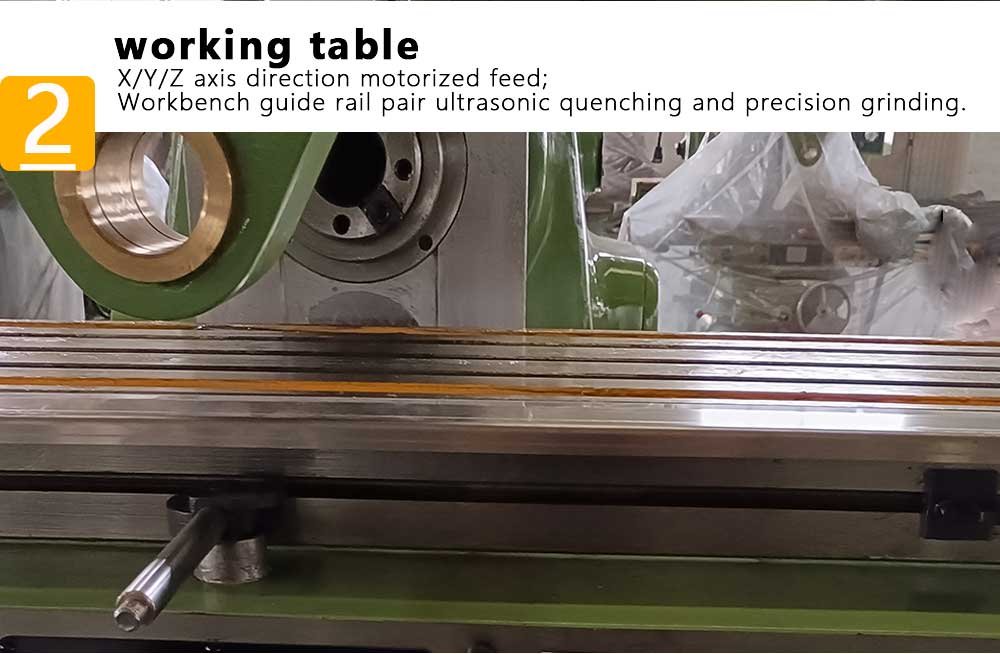

| Table size | 1250*360mm |
| Max.load of table | 400kg |
| T slot(number-width*pitch) | 5*18 |
| Rapid X / Y /Z axis speed | 10/10/8m/min |
| Cutting feed speed | 6m/min |
| Torque of the three-axis servo motor | 6/7.7/10N.m |
| Location accuracy | ±0.01/300mm |
| Accuracy of repeated location determination | ±0.008mm |
| Machine weight | 2800kg |
| Overall dimension | 2220*1850*2350mm |
