CNC milling machine

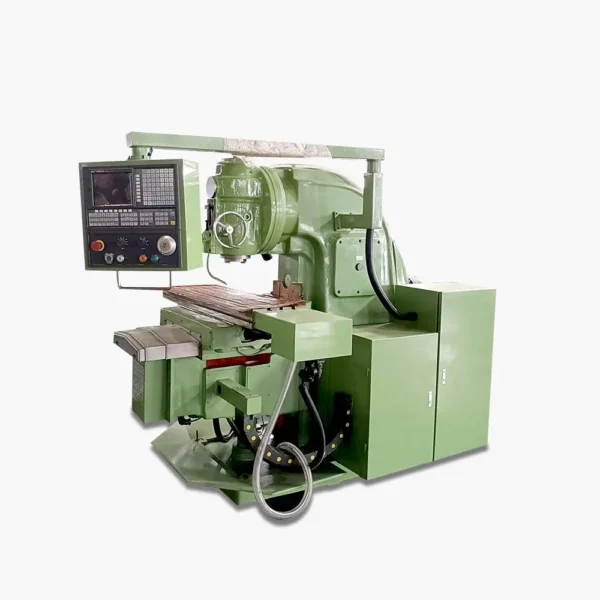

CNC MILLING MACHINE 67K26

  • Type:CNC milling machine
  • Model Number:67K26
  • Origin: Shandong, China
  • Key Points Of Sale:CNC
  • Trademark: Congou
  • Condition: New
  • Table size:  800*260/300mm
  • Outgoing Video Check: Submitted
  • Size (L*W*H): 2200*1800*2250mm
  • Weight(Kg): 2350
  • Color: Customizable
  • Spindle motor power: 3kw
Get A Quote
Contact Us

VIDEO ABOUT CNC MILLING MACHINE 67K26

DESCRIPTION OF CNC MILLING MACHINE 67K26

The wide-universal milling machine is designed for milling parts with cylindrical, disc and shaped milling cutters using a horizontal spindle, and end, end and keyway milling cutters using a rotary vertical spindle. Drilling and reaming, chiseling, caulking, countersinking, deployment, boring can also be performed on the machine.

The milling machine is an innovative development, equipped with an operational programming system, which allows it to be used both in manual mode and automatically according to programs for processing rectilinear contours.

The machine is used in single and small-scale production in tool and mechanical workshops of machine-building enterprises.

CHARACTRICTICS OF CNC MILLING MACHINE 67K26

Model67K26
X / Y /Z axis route600/360/450mm
Distance between spindle nose and working surface of base70-520mm
Distance from the center of the spindle to the guide column380mm
Spindle speed range6000rpm
Spindle taperBT40-120
Spindle motor power3kw
Table size800*260/300mm
Max.load of table350kg
T slot(number-width*pitch)5*16-80
Rapid X / Y /Z axis speed12/12/10m/min
Cutting feed speed12/12/10m/min
Torque of the three-axis servo motor6/6/15N.m
Location accuracy±0.015/300mm
Accuracy of repeated location determination±0.008mm
Machine weight2350kg
Overall dimension2200*1800*2250mm
