VIDEO ABOUT CNC FLAT BED LATHE MACHINE H80

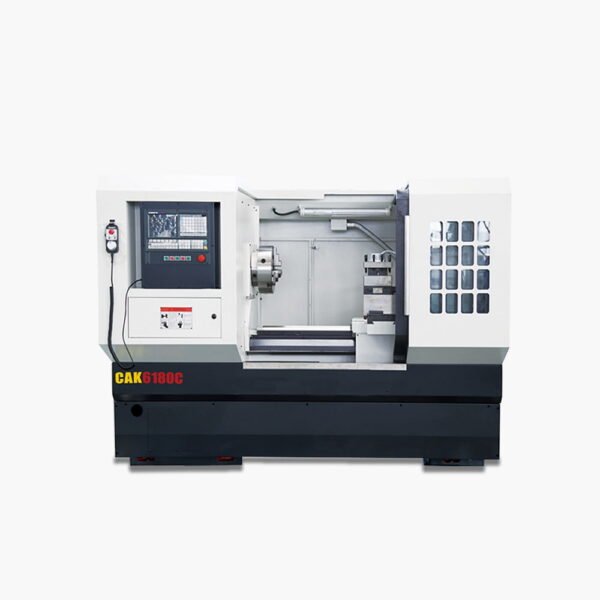

DESCRIPTION OF CNC FLAT BED LATHE MACHINE H80

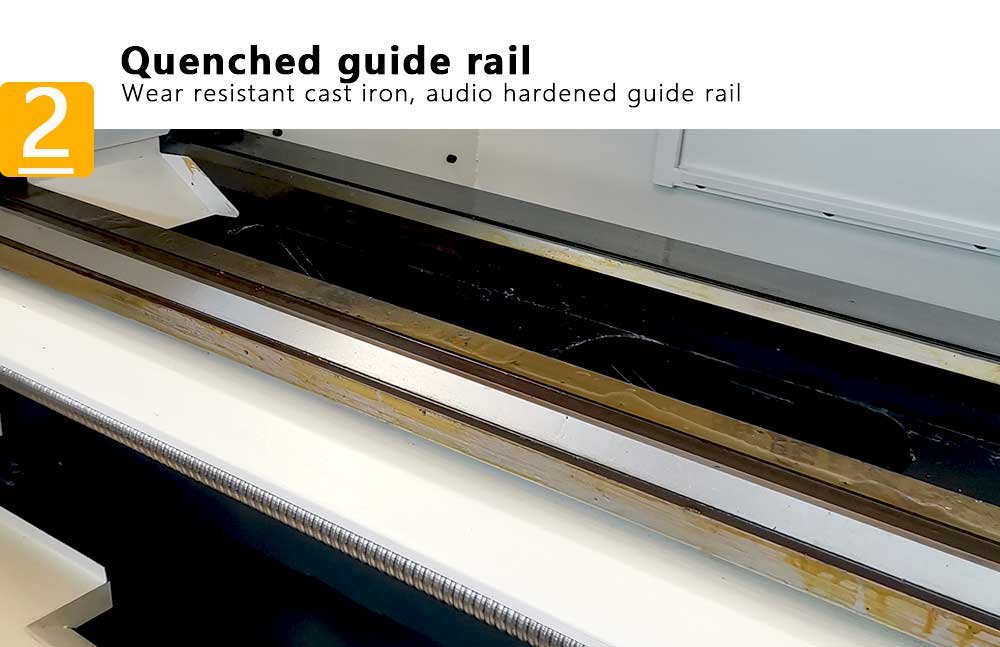

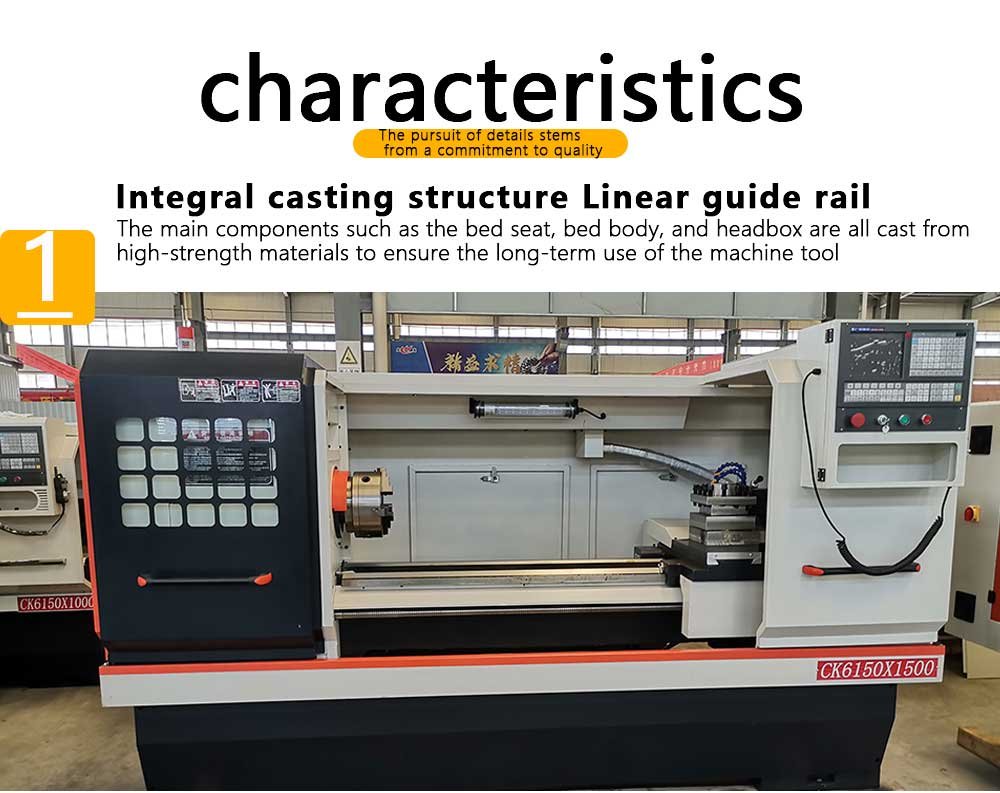

- Heavy machine bed made of high-quality casting with large, hardened and polished guides
- High torque on the spindle is provided by a 4-speed gearbox with hydraulic shifting and stepless adjustment of powerful drives and ballscrews on all axes

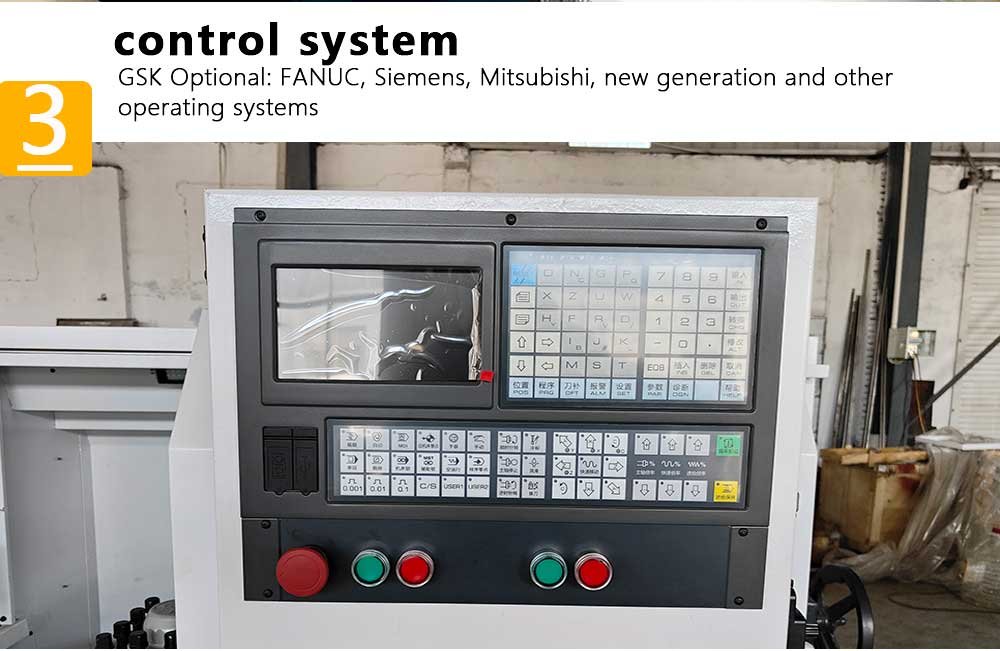

- The CNC is an intuitive and easy-to-learn control system with a large number of cycles for simple programming with the help of an editor – the optimal CNC for serial and single production of parts of complex shape
- A productive cooling system and centralized lubrication are included as standard
CHARACTERISTICS OF H80
| Model | H80 |
| Swing over bed | 800mm |
| Swing over cross slide | 520mm |
| Distance between centers | 1000/1500/2000/3000/4000/5000/6000mm |
| Spindle bore | 104mm |
| Spindle bore taper | MT5 |
| Spindle nose type | C11 |
| Spindle speed steps | VF.3 steps |
| Spindle speed range | 10-1000rpm |

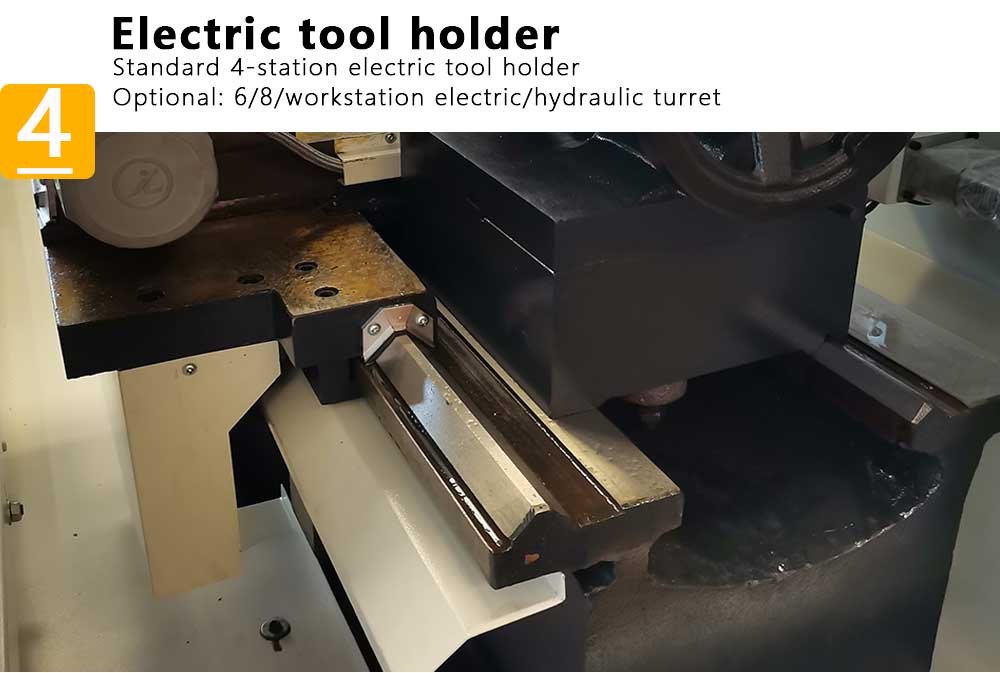

| Turret/tool post | Electric 4 position |
| Tool size | 32*32mm |
| X axis travel | 420mm |
| Z axis travel | 850/1350/1850/2850/3850/4850/5850mm |
| X axis rapid traverse | 4000mm/min |
| Z axis rapid traverse | 6000mm/min |
| Tailstock quill diameter | Ø100mm |
| Tailstock quill taper | MT5 |
| Tailstock quill travel | 250mm |
| Main spindle motor | 11kw |
| Coolant pump motor | 0.125kw |
| Machine weight | 3900/4300/4700/5500/6300/7100/7900kg |
| Overall dimension | 3300/3800/4300/5300/6300/7300/8300*1850*1900mm |
