VIDEO ABOUT CNC FLAT BED LATHE MACHINE H60

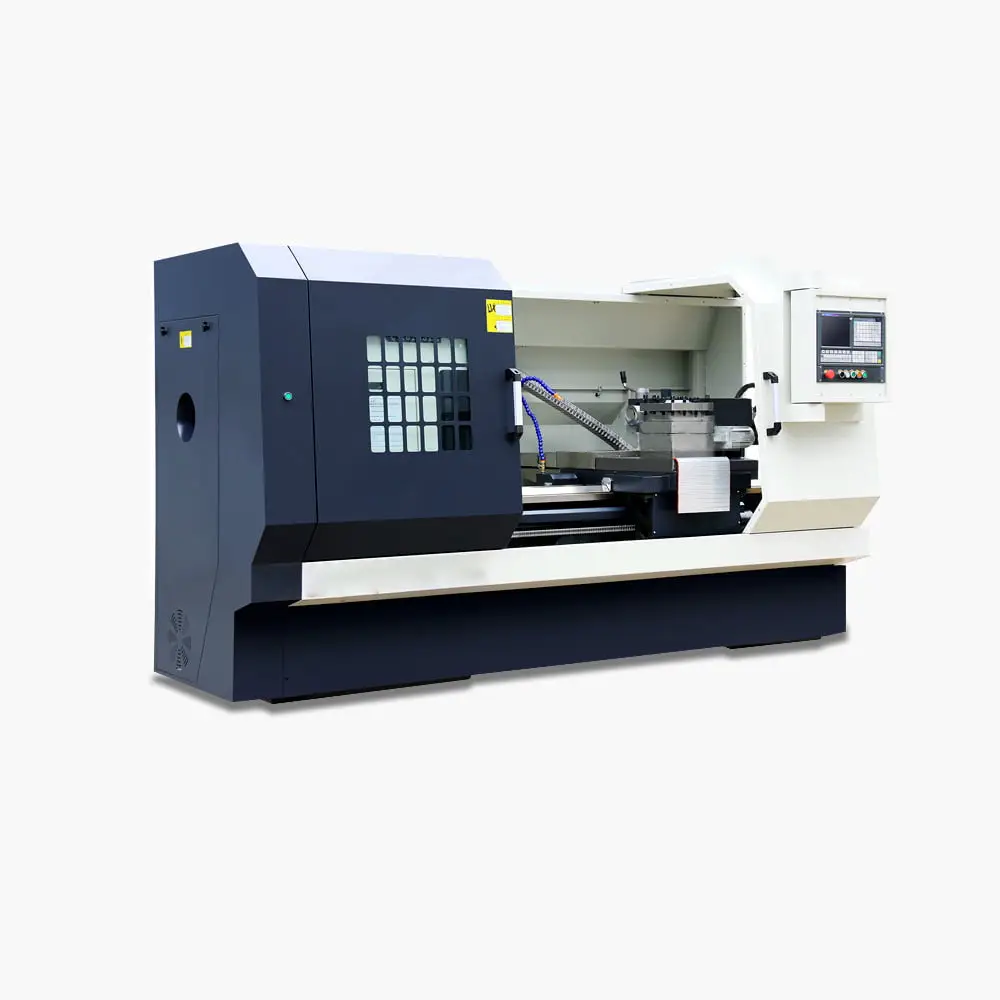

DESCRIPTION OF CNC FLAT BED LATHE MACHINE H60
- Heavy machine bed made of high-quality casting with large, hardened and polished guides
- High torque on the spindle is provided by a 4-speed gearbox with hydraulic shifting and stepless adjustment of powerful drives and ballscrews on all axes
- The CNC is an intuitive and easy-to-learn control system with a large number of cycles for simple programming with the help of an editor – the optimal CNC for serial and single production of parts of complex shape
- A productive cooling system and centralized lubrication are included as standard
CHARACTERISTICS OF H60
| Model | H60 |
| Swing over bed | 600mm |
| Swing over cross slide | 395mm |
| Distance between centers | 1000/1500/2000mm |
| Spindle bore | 82mm |
| Spindle bore taper | MT5 |
| Spindle nose type | A2-8 |
| Spindle speed steps | Stepless |
| Spindle speed range | 1800rpm |
| Turret/tool post | Electric 4 position |
| Tool size | 25*25mm |
| X axis travel | 300mm |
| Z axis travel | 1000/1500/2000mm |
| X axis rapid traverse | 6000mm/min |
| Z axis rapid traverse | 10000mm/min |
| Tailstock quill diameter | Ø75mm |
| Tailstock quill taper | MT5 |
| Tailstock quill travel | 200mm |
| Main spindle motor | 7.5/11kw |
| Coolant pump motor | 0.125kw |
| Machine weight | 3200/3500/4000kg |
| Overall dimension | 2950/3650/4250*1800*1900mm |
