VIDEO ABOUT CNC FLAT BED LATHE MACHINE H140

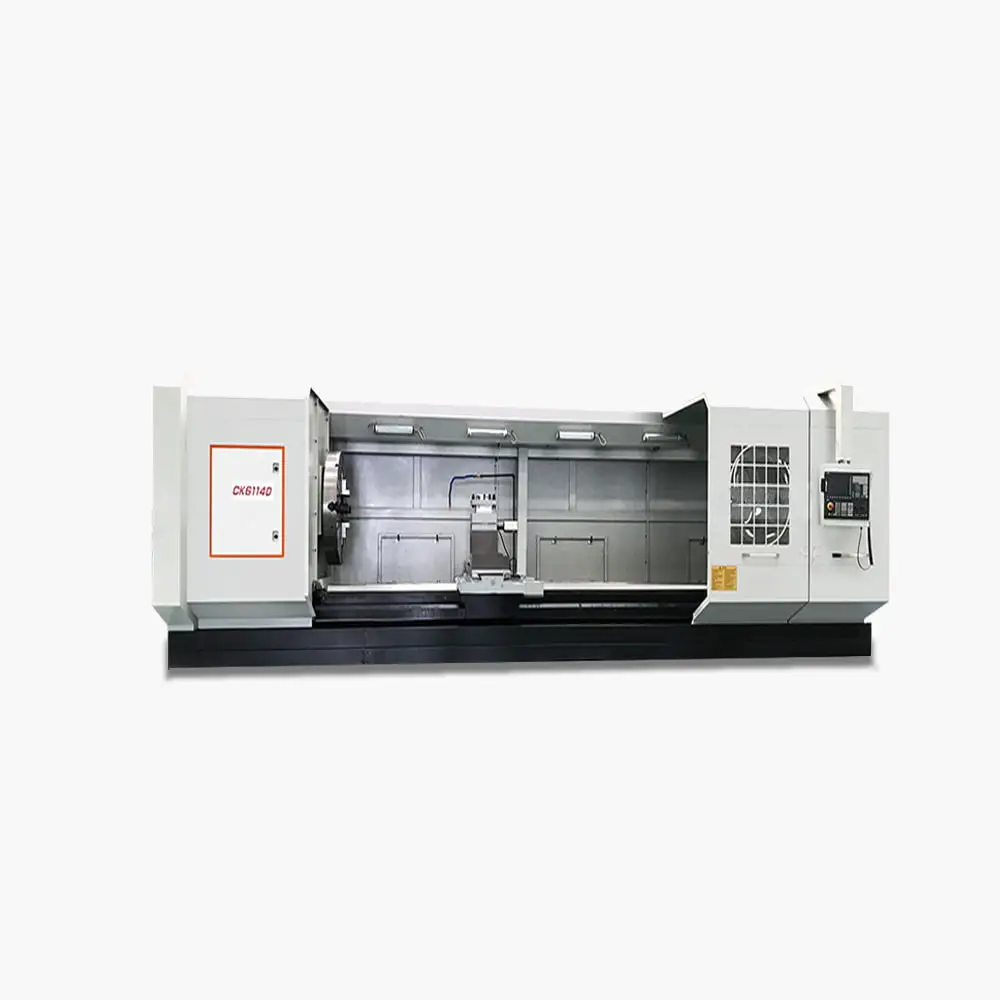

DESCRIPTION OF CNC FLAT BED LATHE MACHINE H140
- Heavy machine bed made of high-quality casting with large, hardened and polished guides
- High torque on the spindle is provided by a 4-speed gearbox with hydraulic shifting and stepless adjustment of powerful drives and ballscrews on all axes
- The CNC is an intuitive and easy-to-learn control system with a large number of cycles for simple programming with the help of an editor – the optimal CNC for serial and single production of parts of complex shape
- A productive cooling system and centralized lubrication are included as standard
CHARACTERISTICS OF H140
| Model | H140 |
| Swing over bed | 1400mm |
| Swing over cross slide | 1000mm |
| Distance between centers | 1500/2000/3000/6000mm |
| Spindle bore | 130mm |
| Spindle bore taper | MT6 |
| Spindle nose type | A2-15 |
| Spindle speed steps | VF.4 steps |
| Spindle speed range | 4-300rpm |
| Turret/tool post | Electric 4 position |
| Tool size | 40*40mm |
| X axis travel | 720mm |
| Z axis travel | 1350/2850/3850/4850/5850mm |
| X axis rapid traverse | 4000mm/min |
| Z axis rapid traverse | 6000mm/min |
| Tailstock quill diameter | Ø160mm |
| Tailstock quill taper | MT6 |
| Tailstock quill travel | 300mm |
| Main spindle motor | 22kw |
| Coolant pump motor | 0.125kw |
| Machine weight | 12000/13000/13500/14500/15500/16500kg |
| Overall dimension | 5000/5800/6500/7500/8500/9500*2350*2450mm |
