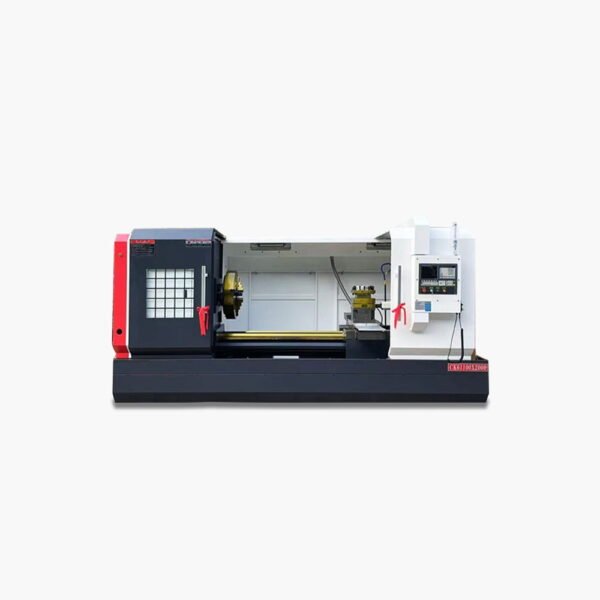

DESCRIPTION OF CNC FLAT BED LATHE MACHINE H100
- Heavy machine bed made of high-quality casting with large, hardened and polished guides
- High torque on the spindle is provided by a 4-speed gearbox with hydraulic shifting and stepless adjustment of powerful drives and ballscrews on all axes
- The CNC is an intuitive and easy-to-learn control system with a large number of cycles for simple programming with the help of an editor – the optimal CNC for serial and single production of parts of complex shape
- A productive cooling system and centralized lubrication are included as standard
CHARACTERISTICS OF H100
Model | H100 |
Swing over bed | 1000mm |
Swing over cross slide | 680mm |
Distance between centers | 1000/1500/2000/3000/4000/5000/6000/7000/8000mm |
Spindle bore | 104mm |
Spindle bore taper | MT5 |
Spindle nose type | C11 |
Spindle speed steps | VF.3 steps |
Spindle speed range | 10-800rpm |
Turret/tool post | Electric 4 position |
Tool size | 40*40mm |
X axis travel | 520mm |
Z axis travel | 850/1350/1850/2850/3850/4850/5850mm |
X axis rapid traverse | 4000mm/min |
Z axis rapid traverse | 6000mm/min |
Tailstock quill diameter | Ø120mm |
Tailstock quill taper | MT6 |
Tailstock quill travel | 250mm |
Main spindle motor | 15kw |
Coolant pump motor | 0.125kw |
Machine weight | 5000/5400/5800/6600/7400/8200/9000/9400/9800kg |
Overall dimension | 3500/4000/4500/5500/6500/7500/8500/9500/10500*2000*2100mm |
